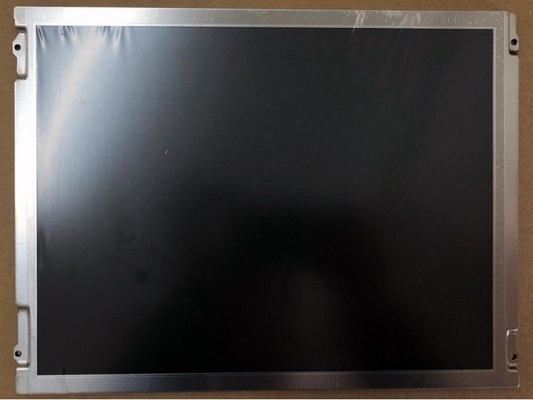

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Brightness: | 400 Cd/m² |
| Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1025×0.3075 mm | Pixel Pitch(W×H) | 0.3075×0.3075 mm [82PPI] | |
| Physical Size : | Active Viewing | 246(W)×184.5(H) mm | Overall Dim. | 276(W)×209(H) mm |
| Bezel Opening | 249.0(W)×188.3(H) mm | Overall Depth | 11.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Φ3.4) on left, right bezel | |||
| Other Detail : | Mass | 655g (Max.) | Surface | Antiglare |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 10/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.340; Wy:0.346 | Support Color | 262K (6-bit) |
| Color Temperature | 5198K | White Uniformity | 1.25/1.45 (Typ./Max.)(5 points) |
| Signal Electrical : | Input Current | 210/260mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.7/1.0W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT100-20P-LS-SMT | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C6B-010A | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/6.0/8.0mA (Min./Typ./Max.) | Input Voltage | 450/500/570V (Min./Typ./Max.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Turn-on Voltage | 800/1000V (Max.)(Ta=+25/0℃) | |||
| Consumption | 6.0±0.6W | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 276(W)×209(H)×11(D) mm, viewing area size of 249.0(W)×188.3(H) mm, with surface treament of Antiglare, net weight of 655g (Max.). As a TN, Normally White, Transmissive LCM product, LB121S03-TL01 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LB121S03-TL01 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB121S03-TL01 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG LCD or it's distributor.
