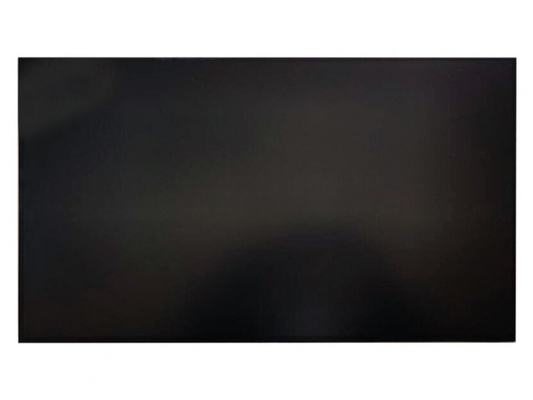

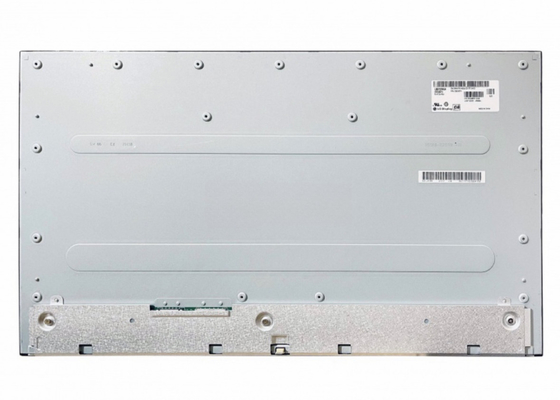

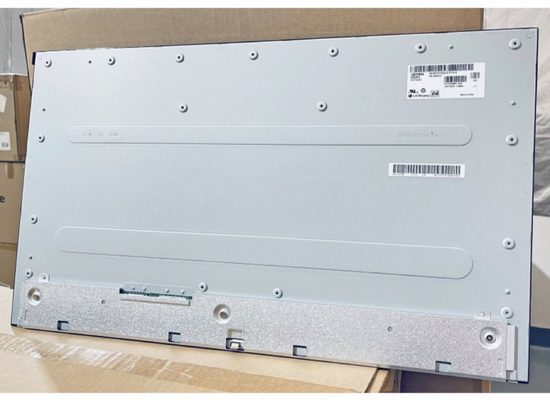

LM270WQ4-SSE1 LG Display 27" 2560(RGB)×1440 Quad-HD 108PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.3(H)×14.4(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.20/3.36Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WQ4-SSE1 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 18S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WQ4-SSE1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM270WQ4-SSE1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
