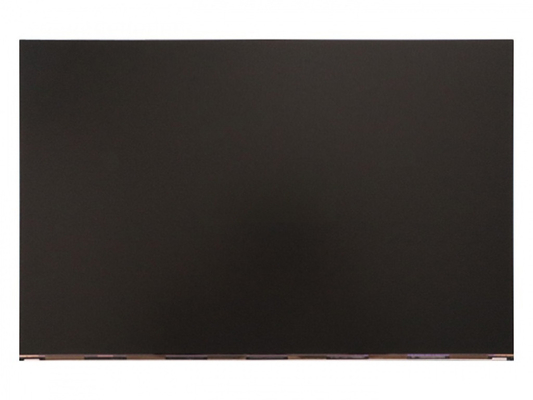

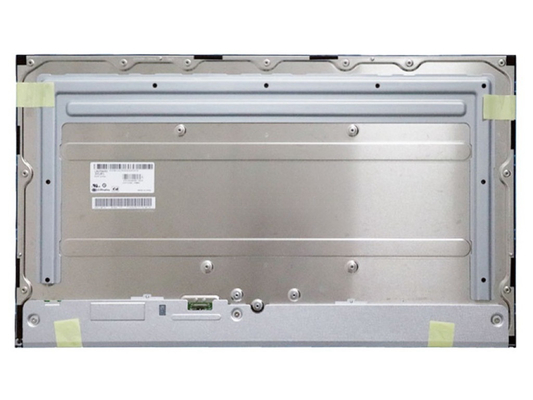

LM270WFA-SSB1 LG Display 27" 1920(RGB)×1080 FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.16(H)×13.9(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.00/3.15Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WFA-SSB1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WFA-SSB1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM270WFA-SSB1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
