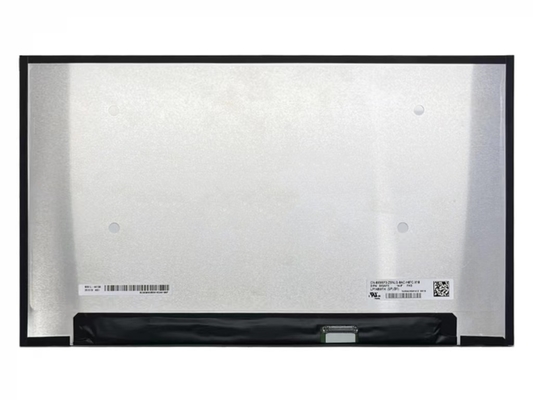

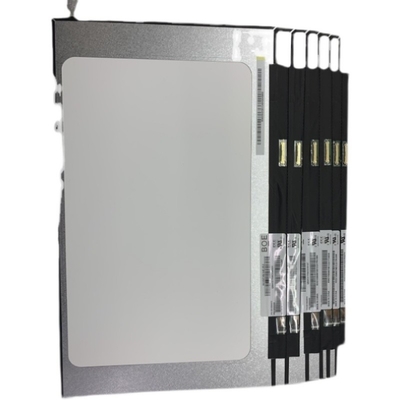

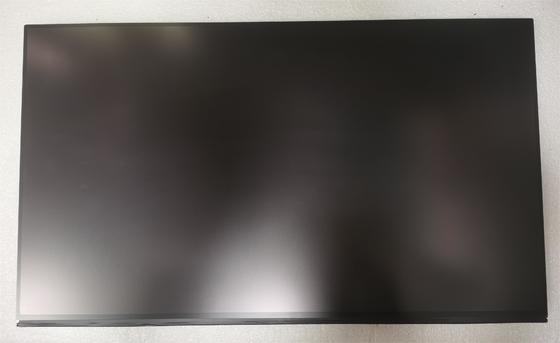

LP140WF6-SPF2 LG Display 14.0" 1920(RGB)×1080, FHD 157PPI, 300 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 320.4(W)×198.6(H)×3(D) mm, viewing area size of 312.4(W)×177.05(H) mm, with surface treament of Antiglare, net weight of 300g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LP140WF6-SPF2 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 74% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LP140WF6-SPF2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP140WF6-SPF2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
