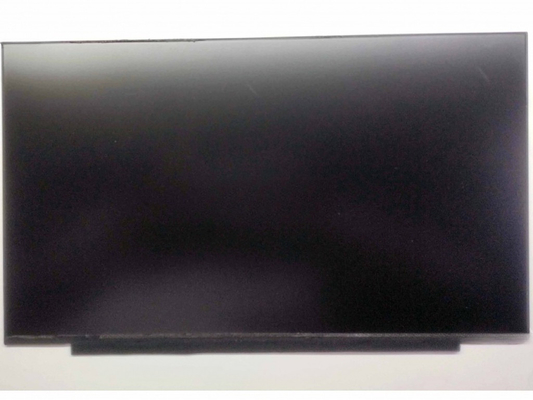

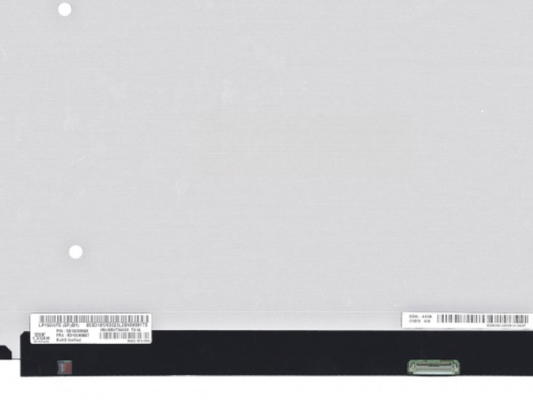

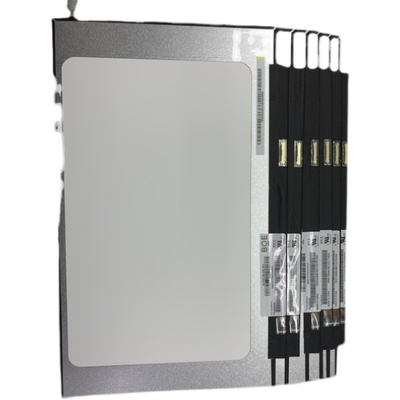

LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY

LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY
LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: LG Display
Certification: ISO9001
Model Number: LP156WFD-SPH1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Contact Now

LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: LG Display Diagonal Size: 15.6"
Resolution: 1920(RGB)×1080, FHD 141PPI Luminance: 220 Cd/m²
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Max. Ratings: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C



LG Display LP156WFC-SPY1 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.05975×0.17925 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.17925×0.17925 mm (H×V) [141PPI]
Mechanical Size :
Display Area
344.16×193.59 mm (H×V)
Bezel Area
-
Outline Dim.
350.66×205.8 mm (H×V)
Outline Depth
1.9/4.4 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Holes & Brackets :
Face mounting holes (4 pcs) on up slugs
Other Features :
Weight
209g (Max.)
Surface
Glare (Haze 0%)



LG Display LP156WFC-SPY1 Optical Details

Basic Information :
Brightness
220 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.40/1.60 (Max.)(5/13 points)
1931 Color Gamut :
NTSC Ratio
73%
sRGB
100% coverage
Adobe RGB
76% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP156WFC-SPY1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
12K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
6.0/12.0/21.0V (Min./Typ./Max.)
Current Input
365/375mA (Typ./Max.)
Consumption
4.4/4.5W (Typ./Max.)



LG Display LP156WFC-SPY1 Interface Detail

Signal Systerm :
eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
180/198mA (Typ./Max.)
Consumption
0.59/0.65W (Typ./Max.)
Interface Features :
Type
Connector
Position

Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×205.69(H)×5.4(D) mm, with surface treament of Antiglare, net weight of 380g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP156WFD-SPH1 can provides 220 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP156WFD-SPH1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP156WFD-SPH1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.



LP156WFD-SPH1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI ,220 cd/m² INDUSTRIAL LCD DISPLAY 0
