LP156WFD-SPH2 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 250 cd/m² INDUSTRIAL LCD DISPLAY

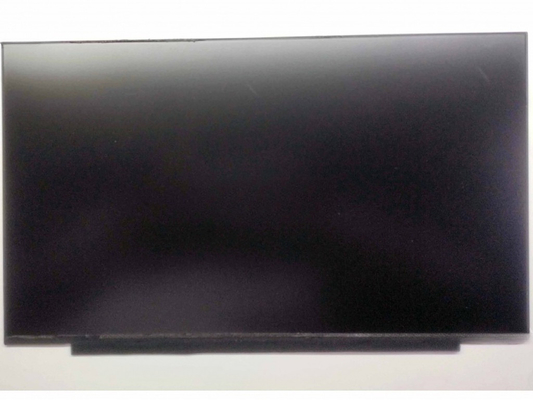

Large Image : LP156WFD-SPH2 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG Display
Certification:	ISO9001
Model Number:	LP156WFD-SPH2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION

Contact Now

LP156WFD-SPH2 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 250 cd/m² INDUSTRIAL LCD DISPLAY

Description

Brand:	LG Display	Diagonal Size:	15.6"
Resolution:	1920(RGB)×1080, FHD 141PPI	Luminance:	250 Cd/m²
Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)	Max. Ratings:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LG Display LP156UD3-SPB4 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1080, FHD	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.05975×0.17925 mm (H×V)	Pixel Pitch(W×H)	0.17925×0.17925 mm (H×V) [141PPI]
Physical Size :	Active Viewing	344.16×193.59 mm (H×V)	Overall Dim.	350.66×207.29 mm (H×V)
Physical Size :	Bezel Opening	-	Overall Depth	3.0/5.4 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style	Slim (PCBA Flat, T≤3.2mm)
Fixation :	Without
Other Detail :	Mass	380g (Max.)	Surface	Antiglare, Hard coating (3H)

LG Display LP156UD3-SPB4 Optical Details

Basic Information :	Luminance	250 cd/m² (Typ.)	Contrast Ratio	700 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	25 (Typ.)(Tr+Td) ms
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.07B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	96%	sRGB	100% coverage
	Adobe RGB	88% coverage	DCI-P3	100% coverage
	Rec.2020	72% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP156UD3-SPB4 Interface Details

Signal Electrical :	Input Current	303/334mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	1.0/1.1W (Typ./Max.)	Signal Interface	eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	HRS	KN38-40S-0.5H	1 pcs	0.5 mm	40 pins

LG Display LP156UD3-SPB4 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	QLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	12K(Min.) (Hours)
Interface Features :	Position	-	Physical Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current	542/563mA (Typ./Max.)		Input Voltage	8.0/12.0/21.0V (Min./Typ./Max.)
Driver Electrical :	Consumption	6.5/6.75W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×207.29(H)×5.4(D) mm, with surface treament of Antiglare, net weight of 380g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP156WFD-SPH2 can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP156WFD-SPH2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP156WFD-SPH2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

LP156WFD-SPH2 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 250 cd/m² INDUSTRIAL LCD DISPLAY 0
