LP156UD3-SPB4 LG Display 15.6" 3840(RGB)×2160, UHD 283PPI , 600 cd/m² INDUSTRIAL LCD DISPLAY

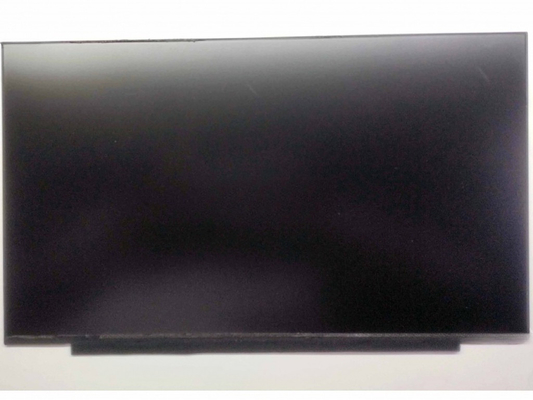

Large Image : LP156UD3-SPB4 LG Display 15.6" 3840(RGB)×2160, UHD 283PPI , 600 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG Display
Certification:	ISO9001
Model Number:	LP156UD3-SPB4

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION

Contact Now

LP156UD3-SPB4 LG Display 15.6" 3840(RGB)×2160, UHD 283PPI , 600 cd/m² INDUSTRIAL LCD DISPLAY

Description

Brand:	LG Display	Diagonal Size:	15.6"
Resolution:	3840(RGB)×2160, UHD 283PPI	Luminance:	600 Cd/m²
Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)	Max. Ratings:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LG Display LP156UD3-SPB4 Mechanical Details

Pixel Features :	Number of Pixel	3840(RGB)×2160 [UHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.02988×0.08964 mm	Pixel Pitch(W×H)	0.08964×0.08964 mm [283PPI]
Physical Size :	Active Viewing	344.218(W)×193.622(H) mm	Overall Dim.	349.92(W)×215.87(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	2.6 (Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style	Slim (PCBA Flat, T≤3.2mm)
Fixation :	Without
Other Detail :	Mass	300g (Max.)	Surface	Antiglare, Hard coating (3H)

LG Display LP156UD3-SPB4 Optical Details

Basic Information :	Luminance	600 cd/m² (Typ.)	Contrast Ratio	1700 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.07B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	96%	sRGB	100% coverage
	Adobe RGB	88% coverage	DCI-P3	100% coverage
	Rec.2020	72% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP156UD3-SPB4 Interface Details

Signal Electrical :	Input Current	303/334mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	1.0/1.1W (Typ./Max.)	Signal Interface	eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	HRS	KN38-40S-0.5H	1 pcs	0.5 mm	40 pins

LG Display LP156UD3-SPB4 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	QLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	12K(Min.) (Hours)
Interface Features :	Position	-	Physical Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current	542/563mA (Typ./Max.)		Input Voltage	8.0/12.0/21.0V (Min./Typ./Max.)
Driver Electrical :	Consumption	6.5/6.75W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 349.92(W)×215.87(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LP156UD3-SPB4 can provides 600 cd/m² display brightness 1700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product adopted QLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LP156UD3-SPB4 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP156UD3-SPB4 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.

LP156UD3-SPB4 LG Display 15.6" 3840(RGB)×2160, UHD 283PPI , 600 cd/m² INDUSTRIAL LCD DISPLAY 0
