LP156WFE-SPD1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : LP156WFE-SPD1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG Display
Certification:	ISO9001
Model Number:	LP156WFE-SPF2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION

Contact Now

LP156WFE-SPD1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 300 cd/m² INDUSTRIAL LCD DISPLAY

Description

Brand:	LG Display	Diagonal Size:	15.6"
Resolution:	1920(RGB)×1080, FHD 141PPI	Luminance:	300 Cd/m²
Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)	Max. Ratings:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LG Display LP156WFE-SPF2 Mechanical Features

Panel Size :	15.6 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.05975×0.17925 mm	0.17925×0.17925 mm [141PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	344.16×193.59 mm	-	350.66×205.74 mm	2.4/4.5 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	Slim (PCBA Bent, T≤3.0mm)
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	320g (Max.)	Antiglare, Hard coating (3H)

LG Display LP156WFE-SPF2 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	400 cd/m² (Typ.)	IPS, Normally Black, Transmissive	1500:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	85/85/85/85 (Typ.)(CR≥10)	Symmetry	30 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	76%	100%	76%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	79%	57%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.40/1.60 (Max.)(5/13 points)

LG Display LP156WFE-SPF2 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	104/122mA (Typ./Max.)		3.3V (Typ.)			0.34/0.40W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	I-PEX	20696-030E-02	1 pcs	0.4 mm	30 pins	EDP-30P2L-020I

LG Display LP156WFE-SPF2 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	-	-	15K(Min.)	-
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in signal interface	With LED Driver
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	304/313mA (Typ./Max.)		5.0/12.0/21.0V (Min./Typ./Max.)			3.45/3.55W (Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, net weight of 270/280g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP156WFE-SPD1 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP156WFE-SPD1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP156WFE-SPD1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.

LP156WFE-SPD1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 300 cd/m² INDUSTRIAL LCD DISPLAY 1

Tag:

Contact Person: Ms. Shirley

Tel: +8613352991648

Fax: 852-3-1828535

Other Products

LM270WQ4-SSE1 LG Display 27" 2560(RGB)×1440 Quad-HD 108PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Brand: LG Display

Diagonal Size: 27"

Resolution: 2560(RGB)×1440, Quad-HD 108PPI

Brightness: 350 cd/m²

LM250WQ4-SSB1 LG Display 25" 2560(RGB)×1440 Quad-HD 117PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Brand: LG Display

Diagonal Size: 25"

Resolution: 2560(RGB)×1440, Quad-HD 117PPI

Brightness: 400 cd/m²

LM270WFA-SSB1 LG Display 27" 1920(RGB)×1080 FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Brand: LG Display

Diagonal Size: 27"

Resolution: 1920(RGB)×1080, FHD 81PPI

Brightness: 300 cd/m²

LM240WUA-SSB1 LG Display 24" 1920(RGB)×1200, WUXGA 94PPI, 300 cd/m² INDUSTRIAL LCD DISPLAY

Brand: LG Display

Diagonal Size: 24"

Resolution: 1920(RGB)×1200, WUXGA 94PPI

Brightness: 300 cd/m²

LP133WU1-SPB1 LG Display 13.3" 1920(RGB)×1200, WUXGA 170PPI, 300 cd/m² INDUSTRIAL LCD DISPLAY

Brand: LG Display

Diagonal Size: 13.3"

Resolution: 1920(RGB)×1200, WUXGA 170PPI

Brightness: 300 cd/m²

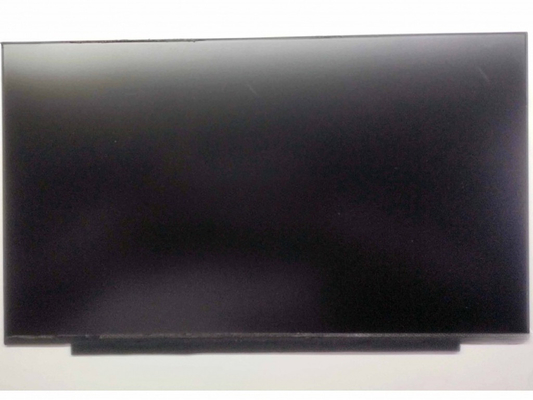

LP156WFE-SPD1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 300 cd/m² INDUSTRIAL LCD DISPLAY

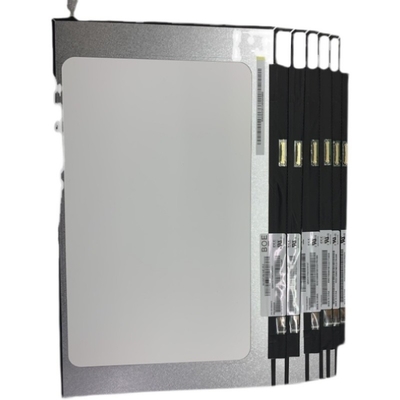

LP156WFE-SPD1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 300 cd/m² INDUSTRIAL LCD DISPLAY

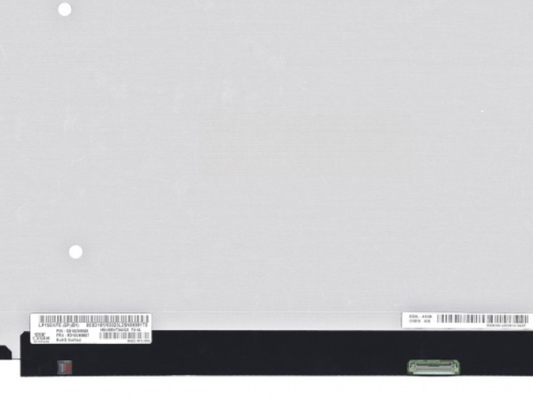

LP156WFE-SPD1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI , 300 cd/m² INDUSTRIAL LCD DISPLAY
