LM240WUA-SSD1 LG Display 24" 1920(RGB)×1200, WUXGA 94PPI, 300 cd/m² INDUSTRIAL LCD DISPLAY

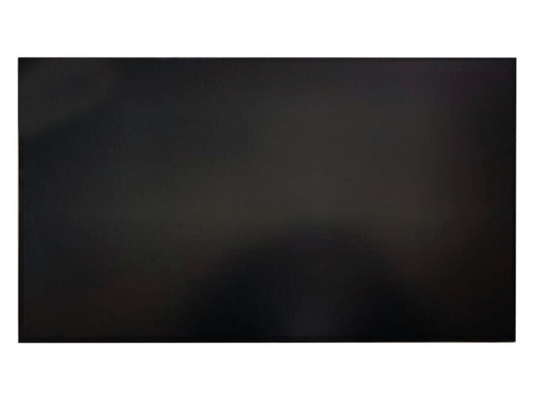

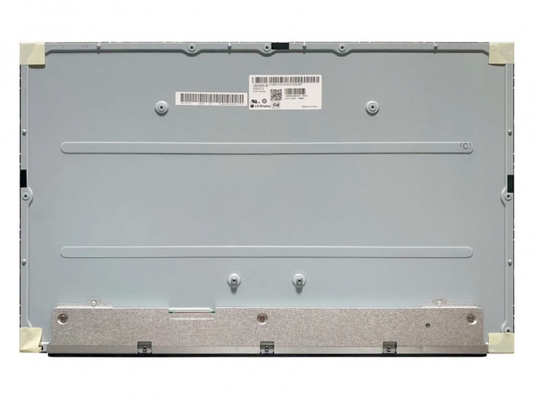

Large Image : LM240WUA-SSD1 LG Display 24" 1920(RGB)×1200, WUXGA 94PPI, 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG Display
Certification:	ISO9001
Model Number:	LM240WUA-SSD1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION

Contact Now

LM240WUA-SSD1 LG Display 24" 1920(RGB)×1200, WUXGA 94PPI, 300 cd/m² INDUSTRIAL LCD DISPLAY

Description

Brand:	LG Display	Diagonal Size:	24"
Resolution:	1920(RGB)×1200, WUXGA 94PPI	Luminance:	300 Cd/m²
Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)	Max. Ratings:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LG Display LM240WUA-SSD1 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1200 [WUXGA]	Dot Pitch	0.090×0.270 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.270×0.270 mm (H×V) [94PPI]
Mechanical Size :	Display Area	518.4×324 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	528.2×342.6 mm (H×V)	Outline Depth	6.9/13.3 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style	3-side borderless
Holes & Brackets :	Rear mounting poles (9-M3)
Other Features :	Weight	2.43/2.55Kgs (Typ./Max.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM240WUA-SSD1 Optical Details

Basic Information :	Brightness	300 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	14 (Typ.)(G to G) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	79%	sRGB	99% coverage
	Adobe RGB	77% coverage	DCI-P3	82% coverage
	Rec.2020	59% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM240WUA-SSD1 Backlight Details

Back-light Features:	Lamp Shape	4 strings	Lamp Type	WLED	Life Time	30K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	16S4P	Position	Edge light type (Bottom side)
Lamp Electrical :	Voltage Input	44.3±3.2V		Current Input	56/61mA (Typ./Max.)
Lamp Electrical :	Consumption	10.0/10.7W (Typ./Max.)
Interface Features :	Type	Connector	Position		Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	YEONHO	10035WR-H06D	1.0 mm	6 pins	1 pcs	BLE-6PINS-CCAACC

LG Display LM240WUA-SSD1 Interface Details

Signal Systerm :	LVDS (2 ch, 8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	10.0V (Typ.)		Current Input	400/500mA (Typ./Max.)(60Hz)
Signal Electrical :	Consumption	4.0/5.0W (Typ./Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	UJU	IS100-L30O-C23	1.0 mm	30 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 528.2(W)×342.6(H)×13.3(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.43/2.55Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM240WUA-SSD1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM240WUA-SSD1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM240WUA-SSD1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
