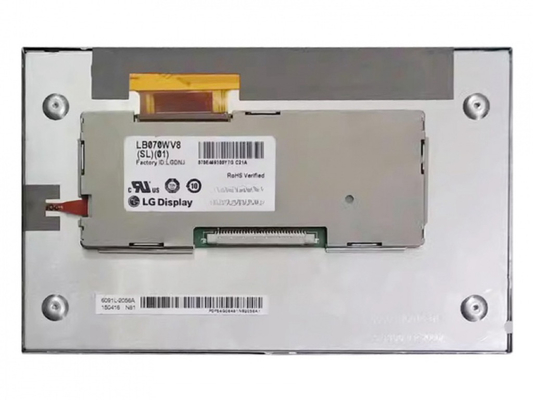

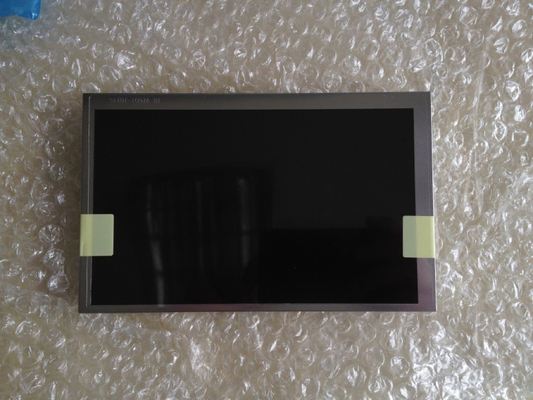

LB070WV8-SL02 LG Display 7" 800(RGB)×480, WVGA 133PPI, 450 cd/m² INDUSTRIAL LCD DISPLAY

LB070WV8-SL02 LG Display 7" 800(RGB)×480, WVGA  133PPI, 450 cd/m² INDUSTRIAL LCD DISPLAY
LB070WV8-SL02 LG Display 7" 800(RGB)×480, WVGA  133PPI, 450 cd/m² INDUSTRIAL LCD DISPLAY LB070WV8-SL02 LG Display 7" 800(RGB)×480, WVGA  133PPI, 450 cd/m² INDUSTRIAL LCD DISPLAY LB070WV8-SL02 LG Display 7" 800(RGB)×480, WVGA  133PPI, 450 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LB070WV8-SL02 LG Display 7" 800(RGB)×480, WVGA 133PPI, 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: LG Display
Certification: ISO9001
Model Number: LB070WV8-SL02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

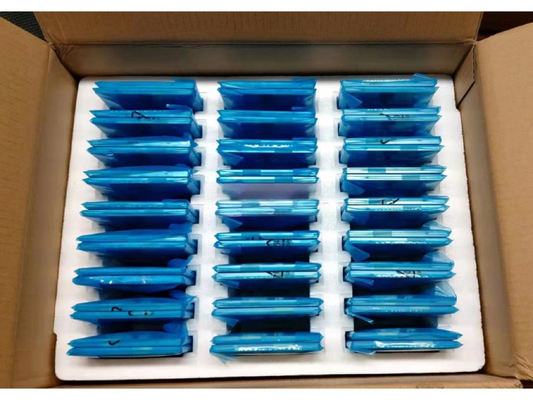

Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION

LB070WV8-SL02 LG Display 7" 800(RGB)×480, WVGA 133PPI, 450 cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: LG Display Diagonal Size: 7"
Resolution: 800(RGB)×480, WVGA 133PPI Luminance: 450 Cd/m²
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Max. Ratings: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C



LG Display LB070WV8-SL02 Mechanical Features

Panel Size : 7.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
800(RGB)×480, WVGA RGB Vertical Stripe 0.0635×0.1905 mm 0.1905×0.1905 mm [133PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
152.4×91.44 mm 155.2×94.2 mm 170×106.3 mm 6.7/10.7 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 15:9 (W : H) Landscape type
Fixation : Rear mounting holes (4-M2)
Other Features : Panel Cover Weight Surface
- 220g (Max.) Antiglare



LG Display LB070WV8-SL02 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
450 cd/m² (Typ.) IPS, Normally Black, Transmissive 800:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Min.)(CR≥10) Symmetry 15/10 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6859K 16.7M (8-bit) X:0.305; Y:0.335
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
63% 83% 65%
DCI-P3 Coverage Rec.2020 Coverage Remarks
66% 47% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.25 (Max.)(9 points)



LG Display LB070WV8-SL02 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
262/341mA (Typ./Max.) 3.3V (Typ.) 0.9/1.3W (Typ./Max.)
Interface Features : Position Type Interface
- Connector LVDS (1 ch, 8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
JAE FI-X30SSLA-HF 1 pcs 1.0 mm 30 pins



LG Display LB070WV8-SL02 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type - - 50K(Min.) -
Interface Features : Position Type WLED Driver
- Included in signal interface With LED Driver
Driver Electrical : Current Input Voltage Input Consumption
210/280mA (Typ./Max.) 11.0/12.0/15.0V (Min./Typ./Max.) 2.5/3.5W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 170(W)×106.3(H)×10.7(D) mm, viewing area size of 155.2(W)×94.2(H) mm, with surface treament of Antiglare, net weight of 220g (Max.). As a IPS, Normally Black, Transmissive LCM product, LB070WV8-SL02 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LB070WV8-SL02 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB070WV8-SL02 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
