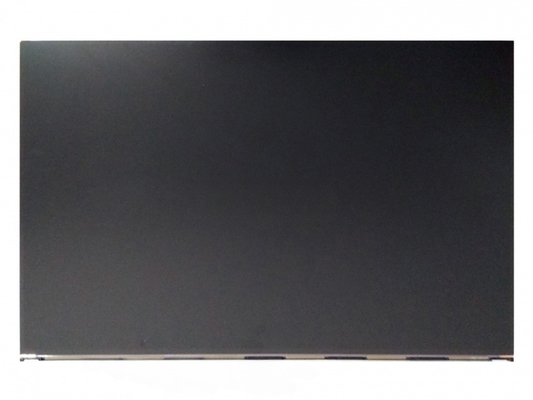

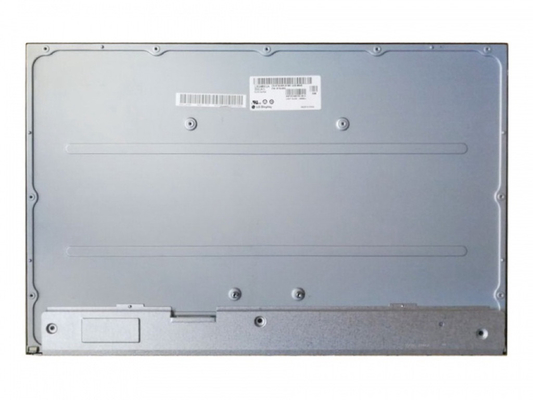

Product Details:
|
| Brand: | LG DISPLAY | Diagonal Size: | 24" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 94PPI | Luminance: | 350 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] | |
| Physical Size : | Active Viewing | 518.4(W)×324(H) mm | Overall Dim. | 546.4(W)×352(H) mm |
| Bezel Opening | 522.4(W)×328.0(H) mm | Overall Depth | 10.3/16.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Detail : | Mass | 2.40/2.52Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 104% | sRGB | 100% coverage |
| Adobe RGB | 99% coverage | DCI-P3 | 94% coverage | |
| Rec.2020 | 78% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Input Current | 320/400 | Input Voltage | 10V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.2/4.0W (Typ./Max.) | Signal Interface | LVDS (2 ch, 10-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | GB-r LED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 18S3P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 120/125mA (Typ./Max.) | Input Voltage | 53.5±3.6V | ||
| Consumption | 19.2/20.5W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHJH(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CNAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 546.4(W)×352(H)×16(D) mm, viewing area size of 522.4(W)×328.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.40/2.52Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM240WU9-SLC1 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (Adobe). This product adopted 18S3P GB-r LED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM240WU9-SLC1 utilizes LVDS (2 ch, 10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 10V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM240WU9-SLC1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
