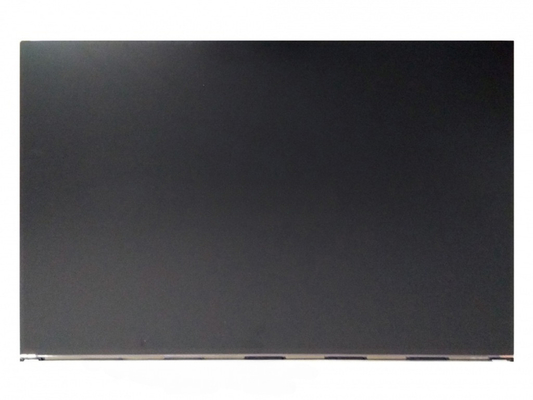

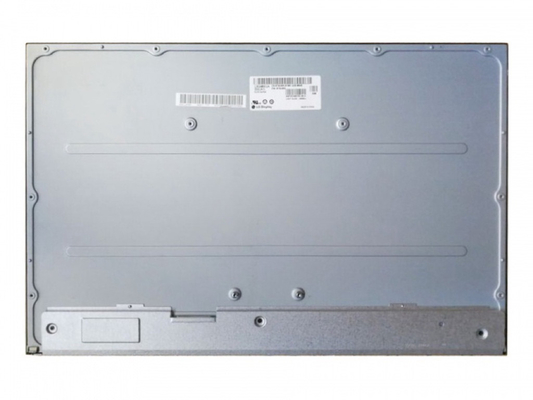

Product Details:
|
| MODEL NUMBER: | LM240WU9-SLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 24INCH | BRIGHTNESS: | 350 Cd/m² |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1200, WUXGA 94PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Panel Size : | 24.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1200, WUXGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm [94PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 518.4×324 mm | 522.4×328.0 mm | 546.4×352 mm | 10.3/16.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.45/2.58Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 6 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 104% | 100% | 99% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 94% | 78% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 531/610mA (Typ./Max.) | 12.0V (Typ.) | 6.36/7.32W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 10-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| GB-r LED | Edge light type | - | - | 30K(Min.) | - | |
| GB-r LED Electrical : | Current Input | Voltage Input | Consumption | |||
| 90/55mA (Typ.)(Grenn/Blue) | 52.7/52.7V (Typ.)(Green/Blue) | 30.6/32.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | GB-r LED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | H401K-D12N-12B | 1 pcs | 2.0 mm | 12 pins | BLE-12PINS-CCAACCCCAACC | |
