LM315WR2-SSA1 LG Display 32" 3840(RGB)×2160, UHD 139PPI 450 cd/m² INDUSTRIAL LCD DISPLAY

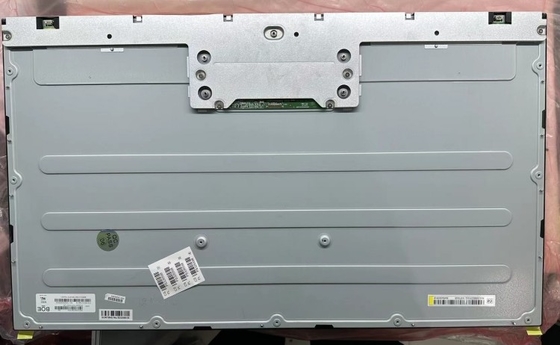

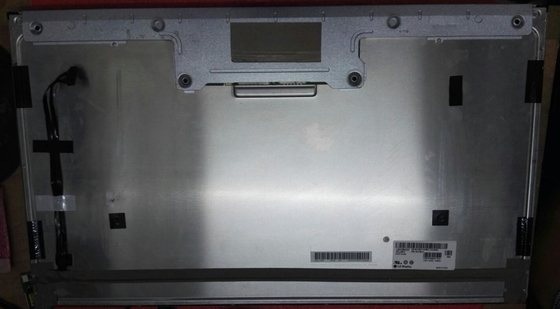

Large Image : LM315WR2-SSA1 LG Display 32" 3840(RGB)×2160, UHD 139PPI 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM315WR2-SSA1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	600PCS

Contact Now

LM315WR2-SSA1 LG Display 32" 3840(RGB)×2160, UHD 139PPI 450 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	LM315WR2-SSA1	BRAND:	LG DISPLAY
SIZE:	32INCH	BRIGHTNESS:	450 Cd/m²
Lamp Type:	WLED	RESOLUTION:	3840(RGB)×2160, UHD 139PPI
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LG Display LM315WR2-SSA1 Mechanical Details

Pixel Features :

Number of Pixel

3840(RGB)×2160, UHD

Arrangement

RGB Vertical Stripe

Dot Pitch(W×H)

0.06053×0.18159 mm

Pixel Pitch(W×H)

0.18159×0.18159 mm [139PPI]

Physical Size :

Active Viewing

697.306(W)×392.234(H) mm

Overall Dim.

718.2(W)×414.3(H) mm

Bezel Opening

Overall Depth

11.82/15.2 (Typ./Max.) mm

Outline Features :

Form Shape

Flat Rectangle

Orientation

Landscape type

Aspect Ratio(W:H)

16:9

Shape Style

4-side borderless

Fixation :

Rear mounting holes

Other Detail :

Mass

3.55/3.73Kgs (Typ./Max.)

Surface

Antiglare (Haze 25%), Hard coating (3H)

LG Display LM315WR2-SSA1 Optical Details

Basic Information :

Luminance

450 cd/m² (Typ.), HDR600

Contrast Ratio

1300:1 (Typ.) (Transmissive)

Good View at

Symmetry

Response Speed

14 (Typ.)(G to G) ms

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

IPS, Normally Black, Transmissive

Color Performance :

Chromaticity

Wx:0.313; Wy:0.329

Support Color

1.07B (8-bit + Hi-FRC)

Color Temperature

6485K

White Variation

1.33 (Max.)(9 points)

1931 Color Gamut :

NTSC Ratio

96%

sRGB

100% coverage

Adobe RGB

87% coverage

DCI-P3

98% coverage

Rec.2020

72% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Signal Systerm :

eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)

Logic Voltage

LG Display LM315WR2-SSA1 Interface Details

Signal Electrical :

Input Current

0.85/1.06A (Typ./Max.)

Input Voltage

10.0V (Typ.)

Consumption

8.5/10.6W (Typ./Max.)

Signal Interface

eDP (4 Lanes), HBR2 (5.4G/lane)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

LS Mtron

GT05Q-30S-H10-MN

0.5 mm

30 pins

1 pcs

LG Display LM315WR2-SSA1 Lightting Details

Lamp Features :

Lamp Type

WLED

Amount

Position

Edge light type

Exchange

Lamp Shape

Lamp Life

30K(Min.) (Hours)

Lamp Electrical :

Input Voltage

28.8±1.0V

Input Current

85/90mA (Typ./Max.)

Consumption

36.7/38.0W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

YEONHO

12507HS-H10G1

1.25 mm

10 pins

2 pcs

Backlight Driver :

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
