LM250WQ4-SSA1 LG Display 25" 2560(RGB)×1440, Quad-HD 117PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

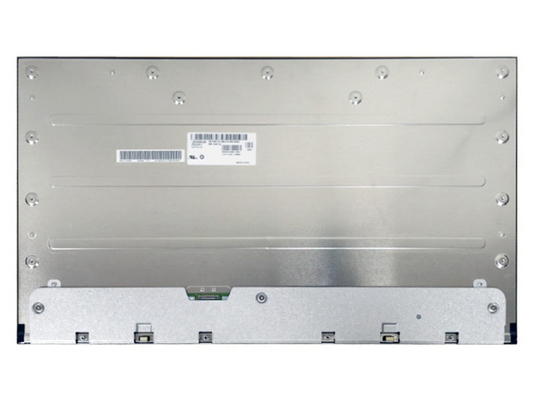

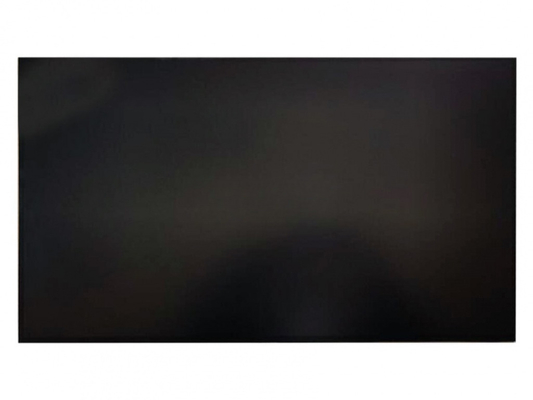

Large Image : LM250WQ4-SSA1 LG Display 25" 2560(RGB)×1440, Quad-HD 117PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM250WQ4-SSA1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	800PCS

Contact Now

LM250WQ4-SSA1 LG Display 25" 2560(RGB)×1440, Quad-HD 117PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	LM250WQ4-SSA1	BRAND:	LG DISPLAY
SIZE:	25INCH	RESOLUTION:	2560(RGB)×1440, Quad-HD 117PPI
BRIGHTNESS:	400CD/M2	VIEWING ANGLEG:	89/89/89/89 (Min.)(CR≥10)
Lamp Type:	WLED	TEMPERATURE RANGE:	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LG Display LM250WQ4-SSA1 Mechanical Details

Pixel Features :	Number of Pixel 2560(RGB)×1440, Quad-HD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0725×0.2160 mm Pixel Pitch(W×H) 0.2160×0.2160 mm [117PPI]
Physical Size :	Active Viewing 552.96(W)×311.04(H) mm Overall Dim. 565(W)×324.25(H) mm Bezel Opening - Overall Depth 7.9/14 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style 4-side borderless
Fixation :	Rear mounting holes (17-M3)
Other Detail :	Mass 1.99/2.09Kgs (Typ./Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

LG Display LM250WQ4-SSA1 Optical Details

Basic Detail :	Luminance 400 cd/m² (Typ.), HDR400 Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14 (Typ.)(G to G) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio 92% sRGB 100% coverage Adobe RGB 86% coverage DCI-P3 94% coverage Rec.2020 69% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM250WQ4-SSA1 Interface Detail

Signal Electrical :	Input Current 410/515mA (Typ./Max.)(60Hz) Input Voltage 10.0V (Typ.) Consumption 4.1/5.15W (Typ./Max.) Signal Interface eDP (4 Lanes), HBR1 (2.7G/lane)
Interface Features :	Position Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment LS Mtron GT05Q-30S-H10-MN 0.5 mm 30 pins 1 pcs EDP-30P4L-031A

LG Display LM250WQ4-SSA1 Lightting Details

Lamp Features :	Lamp Type WLED Amount 9S8P Position Edge light type (Bottom side) Exchange - Lamp Shape 8 strings Lamp Life 30K(Min.) (Hours)
Lamp Electrical :	Input Voltage 25.8±1.8V Input Current 85/90mA (Typ./Max.) Consumption 17.6/18.8W (Typ./Max.)
Interface Features :	Position Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BM06B-SHJS-TB(HF) 1.0 mm 6 pins 2 pcs BLE-6PINS-CCAACC
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
