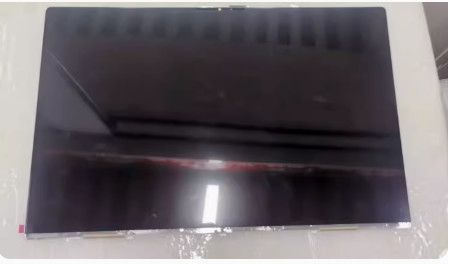

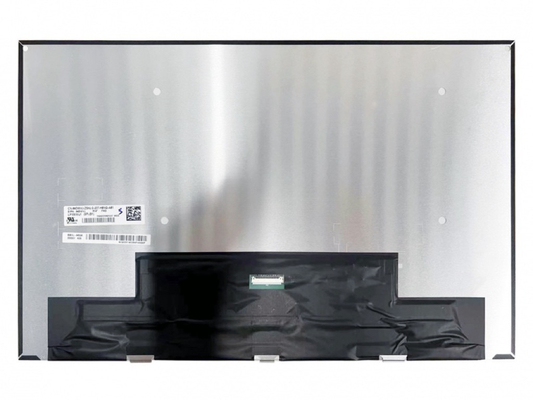

Product Details:
|
| MODEL NUMBER: | LP156WU1-SPB1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 15.6INCH | RESOLUTION: | 1920(RGB)×1200, WUXGA 144PPI |
| BRIGHTNESS: | 500CD/M2 | VIEWING ANGLEG: | 89/89/89/89 (Min.)(CR≥10) |
| Lamp Type: | WLED | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Panel Size : | 15.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1200, WUXGA | RGB Vertical Stripe | 0.0584×0.1752 mm | 0.1752×0.1752 mm [144PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 336.38×210.24 mm | - | 340.26×218.02 mm | 2.3/4.26 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 324g (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | ISP, Normally Black, Transmissive | 1650:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 80% | 100% | 82% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 84% | 60% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.54 (Max.)(5/13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 115/127mA (Typ./Max.) | 3.3V (Typ.) | 0.38/0.42W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (2 Lanes), eDP1.4b, HBR2 (5.4G/lane) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20682-040E-02 | 1 pcs | 0.4 mm | 40 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 271/284mA (Typ./Max.) | 5.0/12.0/20.0V (Min./Typ./Max.) | 3.25/3.41W (Typ./Max.) | ||||

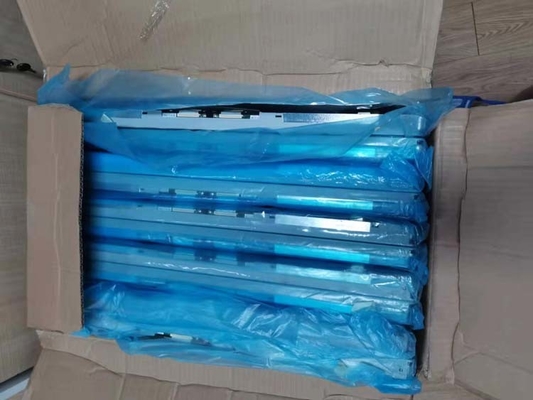

| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 28 | 1 | 427×327×328 | N/A | 0.0458 | |
| Pallet | 504 | 18 | N/A | N/A | N/A |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
