Product Details:
|

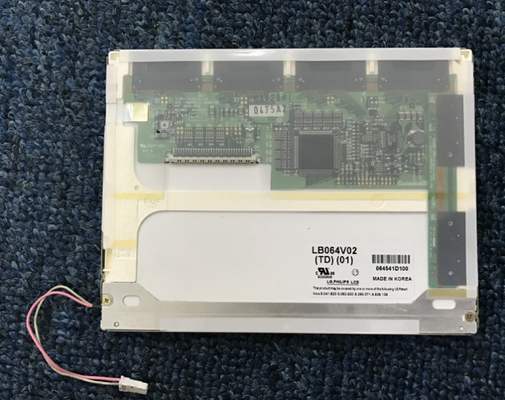

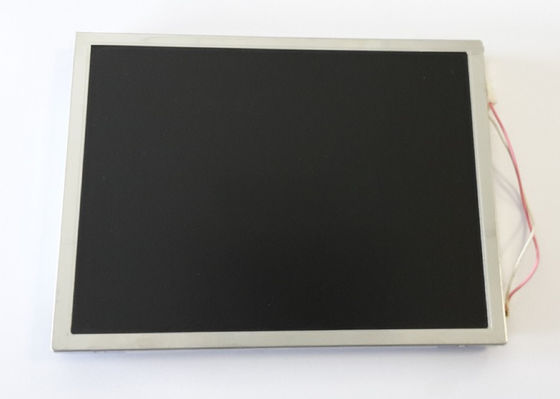

| MODEL NUMBER: | LB064V02-TD01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 6.4INCH | RESOLUTION: | 640(RGB)×480, VGA 124PPI |
| BRIGHTNESS: | 250CD/M2 | VIEWING ANGLEG: | 65/65/50/60 (Typ.)(CR≥10) |
| Lamp Type: | WLED | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Panel Size : | 6.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.204×0.204 [124PPI] | 0.068×0.204 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 130.56(H) × 97.92(V) | 133.8(H) × 101.1(V) | 145.5(H) × 111.5(V) | 6.0±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M2) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 130/140g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 65/65/50/60 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 62% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 46% | 33% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | 1 pcs | - | 20K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 340V (Typ.) | 6.0mA (Typ.) | 2.04W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 40/60/80KHz (Min./Typ./Max.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 160mA (Typ.)(ICC) | 530mW (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS/TTL (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT101-30S-HR11 | 1.0 mm | 30 pins | 1 pcs | DRGB-30P1C6B-110A | |

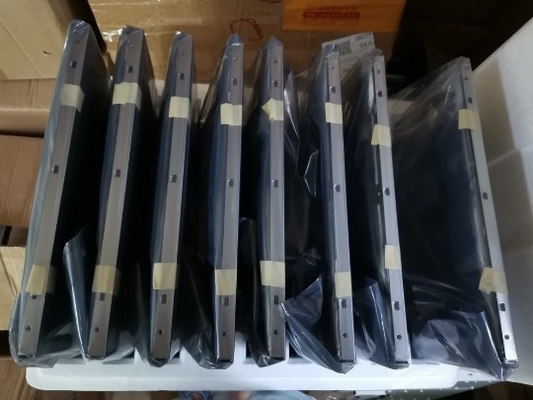

| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 20 | 1 | 335×281×331 | N/A | 0.0312 |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
