LM290WW2-SSD1 LG Display 29" 2560(RGB)×1080, CSHD 96PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

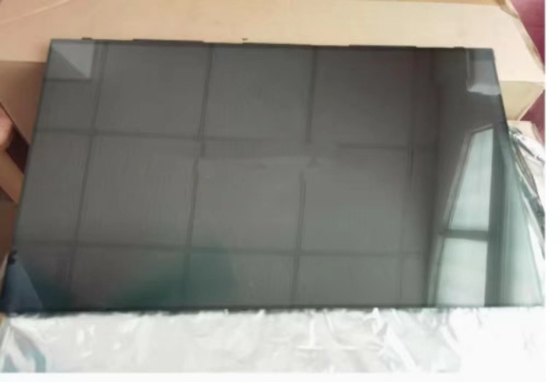

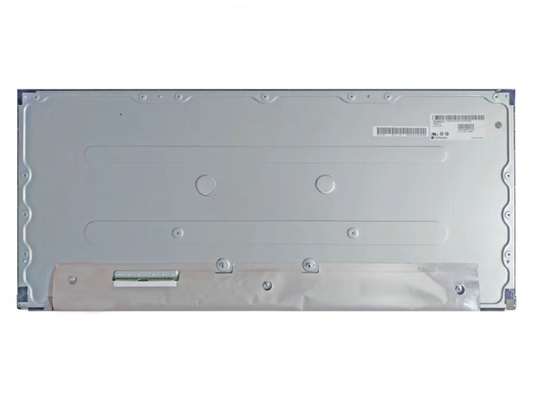

Large Image : LM290WW2-SSD1 LG Display 29" 2560(RGB)×1080, CSHD 96PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM290WW2-SSD1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROWS

Contact Now

LM290WW2-SSD1 LG Display 29" 2560(RGB)×1080, CSHD 96PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Description

Brand:	LG DISPLAY	Diagonal Size:	29"
Resolution:	2560(RGB)×1080, CSHD 96PPI	Luminance:	300 Cd/m² (Typ.)
Outline:	693.6(H)×308.9(V) ×17.5(D) Mm	Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)
Interface Type:	LVDS (4 Ch, 8-bit) , 92 Pins Connector	Environment:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LG Display LM290WW2-SSD1 Mechanical Details

Pixel Features :

Resolution

2560(RGB)×1080, CSHD

Dot Pitch(mm)

0.0876×0.2628 (H×V)

Pixel Format

RGB Vertical Stripe

Pixel Pitch(mm)

0.2628×0.2628 (H×V) [96PPI]

Mechanical Size :

Active Area(mm)

672.768(H) × 283.824(V)

Bezel Area(mm)

Outline Dim.(mm)

693.6(H) × 308.9(V)

Depth(mm)

11.0/17.5 (Typ./Max.)

Outline Features :

Form Style

Flat Rectangle

Shape Style

3-side borderless

Aspect Ratio

21:9 (H:V)

Orientation

Landscape type

Mounting :

Rear mounting holes

Other Spec :

Weight

3.11/3.265Kgs (Typ./Max.)

Treatment

Antiglare, Hard coating (3H)

LG Display LM290WW2-SSD1 Optical Details

Basic Information :

Luminance(cd/m²)

300 (Typ.)

Contrast Ratio

1000:1 (Typ.) (Transmissive)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Display Mode

IPS, Normally Black, Transmissive

Best View on

Symmetry

Response(ms)

14 (Typ.)(G to G)

Color Performance :

White Coordinate

Wx:0.313; Wy:0.329

Display Colors

16.7M (6-bit + Hi-FRC)

Color Temperature

6485K

White Uniformity

1.33 (Max.)(9 points)

1931 Color Gamut :

NTSC Ratio

75%

sRGB

99% coverage

Adobe RGB

76% coverage

DCI-P3

78% coverage

Rec.2020

56% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM290WW2-SSD1 Interface Details

Signal Electrical :

Voltage Supply

10.0V (Typ.)

Current Supply

0.53/0.66A (Typ./Max.)

Consumption

5.3/6.6W (Typ./Max.)

Signal Type :

LVDS (4 ch, 8-bit)

Logic Voltage

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

LS Mtron

GT05P-51S-H38-E1500

0.5 mm

51 pins

1 pcs

LS Mtron

GT05P-41S-H38-E1500

0.5 mm

41 pins

1 pcs

LG Display LM290WW2-SSD1 Backlight Details

Backlight Features :

Type

WLED

Quantity

18S4P

Position

Replacement

Shape

4 strings

Life Time

30K(Min.) Hours

Lamp Electrical :

Voltage Supply

48.6±3.6V

Current Supply

70/75mA (Typ./Max.)

Consumption

11.5/12.4W (Typ./Max.)

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

JST

SM06B-SHJH(HF)

1.0 mm

6 pins

1 pcs

BLE-6PINS-CCAACC

Backlight Driver :

LG Display LM290WW2-SSD1 Application Details

Basic Information :

Brand

Model

LM290WW2-SSD1

Type

a-Si TFT-LCD , LCM

Used For

Screen Size

29.0 inch

Alias)

Environment :

Storage Temp.

-20 ~ 60 °C

Operating Temp.

0 ~ 50 °C

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 672.768(W)×283.824(H) mm, outline size of 693.6(W)×308.9(H)×17.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.11/3.265Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM290WW2-SSD1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 18S4P WLED as it's backlight systerm and have a working life time of 30K hours, external backlight driver is additionally needed. LM290WW2-SSD1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM290WW2-SSD1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display. LM290WW2-SSD1 LG Display 29" 2560(RGB)×1080, CSHD 96PPI 300 cd/m² INDUSTRIAL LCD DISPLAY 0
