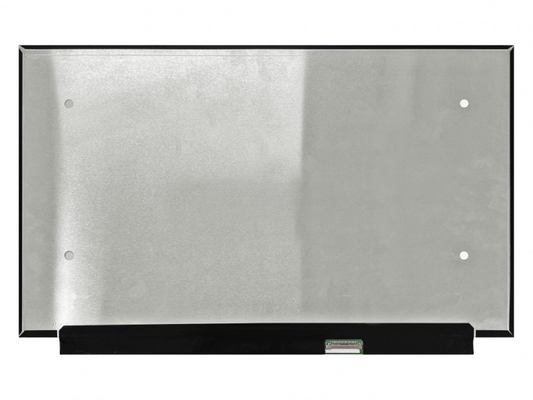

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Outline: | 300.26×187.45×2.4 (H×V×D) |
| Signal Interface: | EDP (2 Lanes) , EDP1.3 , HBR1 (2.7G/lane) , Connector 30 Pins | Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 300.26(W)×187.45(H)×2.4(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 205g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LP133WF7-SPA1 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP133WF7-SPA1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP133WF7-SPA1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
