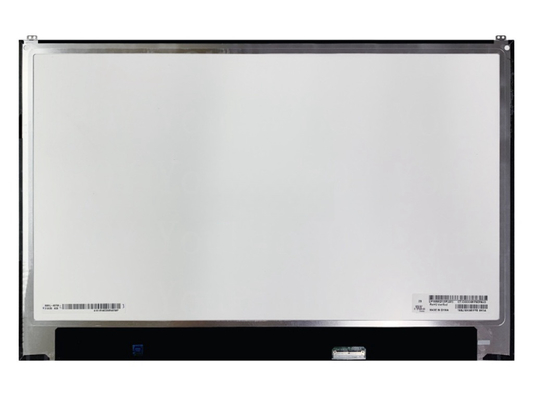

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 16" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1600, WQXGA 188PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Outline: | 349.06(W)×229.39(H) ×3.8(D) Mm |
| Signal Interface: | EDP (4 Lanes) , EDP1.4 , HBR2 (5.4G/lane) , 40 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 2560(RGB)×1600 [WQXGA] | Dot Pitch | 0.04488×0.13464 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.13464×0.13464 mm (H×V) [188PPI] | |
| Mechanical Size : | Display Area | 344.678×215.424 mm (H×V) | Bezel Area | - |
| Outline Dim. | 349.06×229.39 mm (H×V) | Outline Depth | 2.2/3.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Holes & Brackets : | Face mounting holes (4 pcs) on up slugs | |||
| Other Features : | Weight | 225/235g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 98% | sRGB | 100% coverage |
| Adobe RGB | 88% coverage | DCI-P3 | 100% coverage | |
| Rec.2020 | 73% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 7/12/21V (Typ./Max.) | Current Input | 329/342mA (Min./Typ./Max.) | ||
| Consumption | 3.95/4.1W (Min./Typ./Max.) | |||||
| Signal Systerm : | eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 184/221mA (Typ./Max.) | ||
| Consumption | 0.61/0.73W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20729-040E-02 | 0.4 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.06(W)×229.39(H)×3.8(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 225/235g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP160WQ1-SPA1 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP160WQ1-SPA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP160WQ1-SPA1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
