LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY
LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

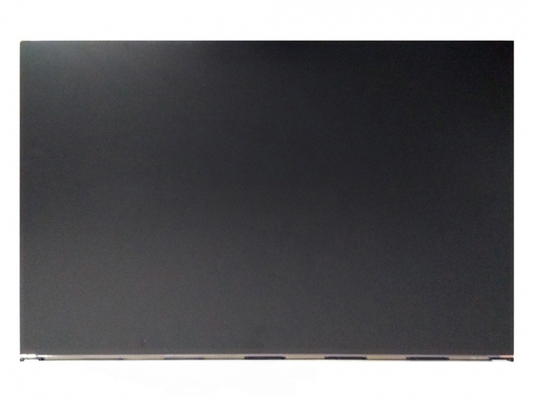

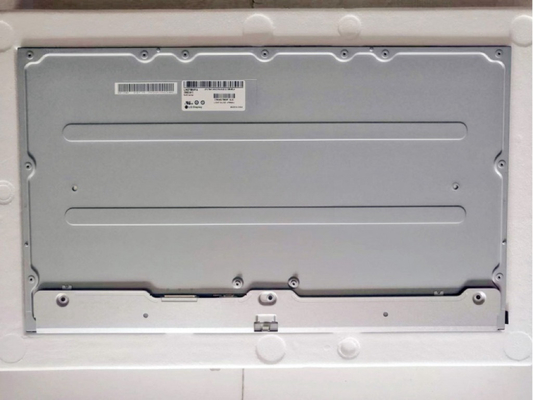

Large Image :  LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: LG Display
Certification: ISO9001
Model Number: LM270WFA-SSA2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

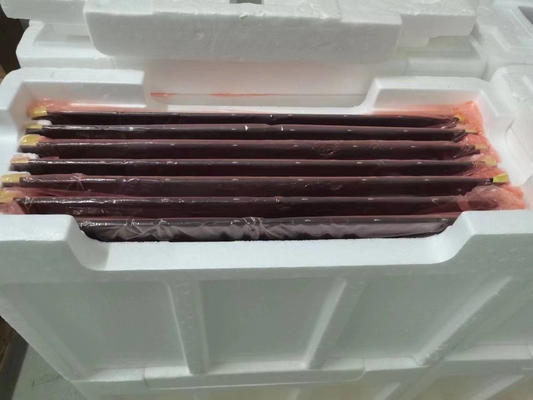

Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Contact Now

LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: LG Display Diagonal Size: 27.0"
Resolution: 1920(RGB)×1080, FHD 81PPI Luminance: 300 Cd/m²
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Outline: 607.1(W)×354.1(H) ×12.66(D) Mm
Active Area: 597.888(W)×336.312(H) Mm Signal Interface: LVDS (2 Ch, 8-bit) , 30 Pins Connector
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY 0L Display LM270WFA-SSA2 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1038×0.3114 mm
Pixel Pitch(W×H)
0.3114×0.3114 mm [81PPI]
Physical Size :
Active Viewing
597.888(W)×336.312(H) mm
Overall Dim.
607.1(W)×354.1(H) mm
Bezel Opening
-
Overall Depth
8.7/12.66 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
3-side borderless
Touchscreen :
TP Controller
With controller
Control Signal
USB
Touch Points
10 points
TP Technology
In-Cell Touch
Fixation :
Rear mounting holes
Other Detail :
Mass
3.15/3.31Kgs (Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)


LG Display LM270WFA-SSA2 Optical Details

Basic Information :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
79%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
82% coverage
Rec.2020
59% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


LG Display LM270WFA-SSA2 Interface Details

Signal Electrical :
Input Current
531/807mA (Typ./Max.)(60Hz)
Input Voltage
5.0V (Typ.)
Consumption
2.66/4.03W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

Physical Type
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
UJU
IS100-L30O-C23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160B

LG Display LM270WFA-SSA2 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
45.3±3.2
Input Current
85/90mA (Typ./Max.)
Consumption
15.4/16.5W W (Typ./Max.)
Interface Features :
Position

Physical Type
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
JST
BM06B-SHJS-TB(HF)
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No

LG Display LM270WFA-SSA2 Application Details

Basic Detail :
Manufacturer

Model Name
LM270WFA-SSA2
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM270WFA (SS)(A2)
Panel Size
27.0 inch
Designed For



Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS

Vibration Level
-

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.1(H)×12.66(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.15/3.31Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WFA-SSA2 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WFA-SSA2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM270WFA-SSA2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
