LM238WR2-SPD1 LG DISPLAY 23.8" 3840(RGB)×2160, UHD 185PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

LM238WR2-SPD1 LG DISPLAY 23.8" 3840(RGB)×2160, UHD 185PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

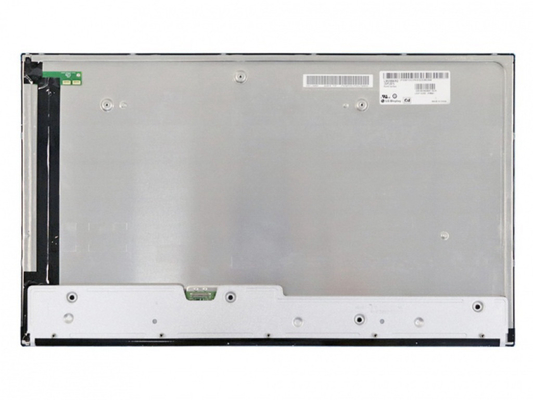

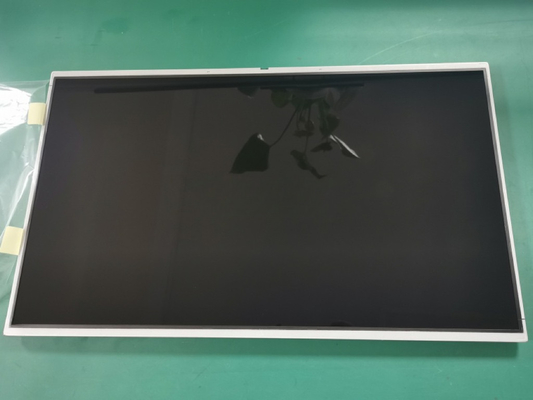

LM238WR2-SPD1 LG DISPLAY 23.8" 3840(RGB)×2160, UHD 185PPI 250 cd/m² INDUSTRIAL LCD DISPLAY LM238WR2-SPD1 LG DISPLAY 23.8" 3840(RGB)×2160, UHD 185PPI 250 cd/m² INDUSTRIAL LCD DISPLAY LM238WR2-SPD1 LG DISPLAY 23.8" 3840(RGB)×2160, UHD 185PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM238WR2-SPD1 LG DISPLAY 23.8" 3840(RGB)×2160, UHD 185PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM238WR2-SPD1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

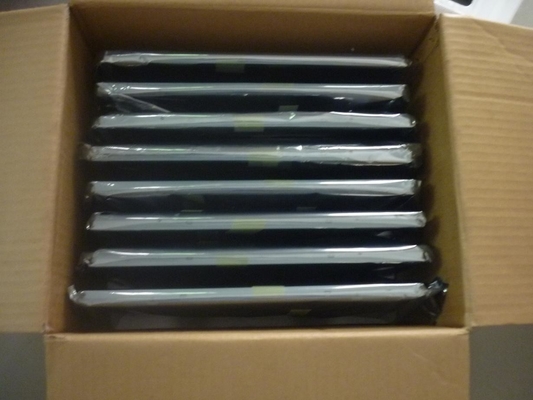

Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROWS
Contact Now

LM238WR2-SPD1 LG DISPLAY 23.8" 3840(RGB)×2160, UHD 185PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: LG DISPLAY Diagonal Size: 27.0"
Resolution: 3840(RGB)×2160, UHD 185PPI Luminance: 250 Cd/m²
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Power Supply: 10.0V (Typ.)
Outline: 545(W)×317.4(H) ×12.7(D) Mm Signal Type: EDP (4 Lanes) , HBR2 (5.4G/lane) , 30 Pins Connector
Max. Ratings: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C



LG Display LM238WR2-SPD1 Mechanical Details

Pixel Features :
Resolution
3840(RGB)×2160, UHD
Dot Pitch(mm)
0.04575×0.13725 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.13725×0.13725 (H×V) [185PPI]
Mechanical Size :
Active Area(mm)
527.04(H) × 296.46(V)
Bezel Area(mm)
530.2(H) × 299.6(V)
Outline Dim.(mm)
545(H) × 317.4(V)
Depth(mm)
8.4/12.7 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Rear mounting Pole (6-M3)
Other Spec :
Weight
1.73/1.82Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)


LG Display LM238WR2-SPD1 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
1.07B (8-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
82%
sRGB
100% coverage
Adobe RGB
79% coverage
DCI-P3
84% coverage
Rec.2020
61% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


LG Display LM238WR2-SPD1 Interface Details

Signal Electrical :
Voltage Supply
10.0V (Typ.)
Current Supply
630/788mA (Typ./Max.)
Consumption
6.3/7.88W (Typ./Max.)
Signal Type :
eDP (4 Lanes), HBR2 (5.4G/lane)
Logic Voltage
-
Interface Features :
Position

Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT05Q-30S-H10-MN
0.5 mm
30 pins
1 pcs
EDP-30P4L-030A



LG Display LM238WR2SPD1Backlight Details

Backlight Features :
Type
WLED
Quantity
16S4P
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
30K(Min.) Hours
Lamp Electrical :
Voltage Supply
47.7±3.2V
Current Supply
75/80mA (Typ./Max.)
Consumption
14.3/15.3W (Typ./Max.)
Interface Features :
Position

Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 545(W)×317.4(H)×12.7(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.73/1.82Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM238WR2-SPD1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WR2-SPD1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM238WR2-SPD1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
