LM190E0A-SLE1 LG DISPLAY 19" 1280(RGB)×1024, SXGA 86PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

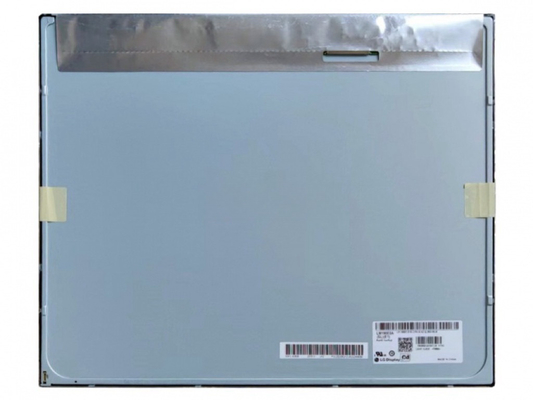

Large Image : LM190E0A-SLE1 LG DISPLAY 19" 1280(RGB)×1024, SXGA 86PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM190E0A-SLE1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROWS

Contact Now

LM190E0A-SLE1 LG DISPLAY 19" 1280(RGB)×1024, SXGA 86PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Description

Brand:	LG DISPLAY	Diagonal Size:	19.0"
Resolution:	1280(RGB)×1024, SXGA 86PPI	Luminance:	250 Cd/m²
Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)	Power Supply:	5.0V (Typ.)
Outline:	396(W)×324(H)×10.4(D) Mm	Signal Type:	LVDS (2 Ch, 8-bit) 30 Pins Connector
Max. Ratings:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LG Display LM190E0A-SLE1 Mechanical Details

Pixel Features :	Pixel Format	1280(RGB)×1024 [SXGA]	Dot Pitch	0.098×0.294 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.294×0.294 mm (H×V) [86PPI]
Mechanical Size :	Display Area	376.32×301.056 mm (H×V)	Bezel Area	378.8×303.0 mm (H×V)
Mechanical Size :	Outline Dim.	396×324 mm (H×V)	Outline Depth	8.7/10.4 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	5:4 (H:V)	Shape Style	Normal bezel
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.46/1.54Kgs (Typ./Max.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM190E0A-SLE1 Optical Details

Basic Information :	Brightness	250 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	14 (Typ.)(G to G) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	74%	sRGB	94% coverage
	Adobe RGB	73% coverage	DCI-P3	77% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM190E0A-SLE1 Backlight Details

Back-light Features:	Lamp Shape	2 strings	Lamp Type	WLED	Life Time	30K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	19S2P	Position	Edge light type (Right side)
Lamp Electrical :	Voltage Input	53.8±3.8V		Current Input	57/62mA (Typ./Max.)
Lamp Electrical :	Consumption	6.1/6.6W (Typ./Max.)
Interface Features :	Type	Connector	Position		Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	YEONHO	10035WR-H06D	1.0 mm	6 pins	1 pcs	BLE-6PINS-CNAANC

LG Display LM190E0A-SLE1 Interface Details

Signal Systerm :	LVDS (2 ch, 8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	5.0V (Typ.)		Current Input	430/540mA (Typ./Max.)
Signal Electrical :	Consumption	2.15/2.70W (Typ./Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	UJU	IS100-L30O-C23	1.0 mm	30 pins	1 pcs	LVDS-30P2C8B-160B

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×10.4(D) mm, viewing area size of 378.8(W)×303.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.46/1.54Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM190E0A-SLE1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 19S2P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM190E0A-SLE1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM190E0A-SLE1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.

LM190E0A-SLE1 LG DISPLAY 19" 1280(RGB)×1024, SXGA 86PPI 250 cd/m² INDUSTRIAL LCD DISPLAY 0
