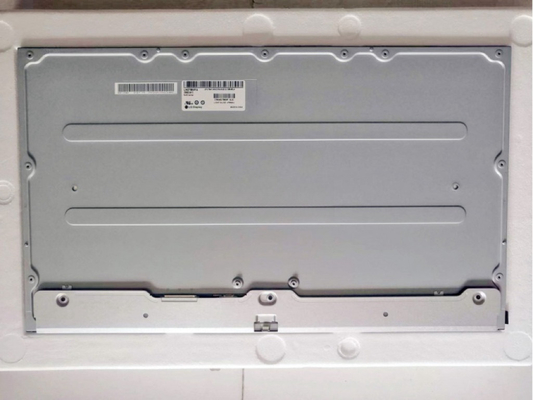

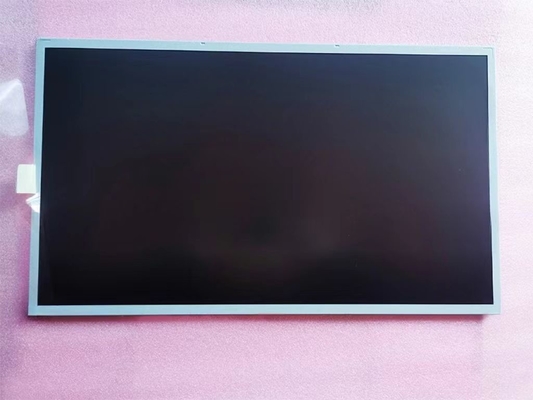

LM270WR3-SSA1 LG DISPLAY 27" 3840(RGB)×2160, UHD 163PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : LM270WR3-SSA1 LG DISPLAY 27" 3840(RGB)×2160, UHD 163PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM270WR3-SSA1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

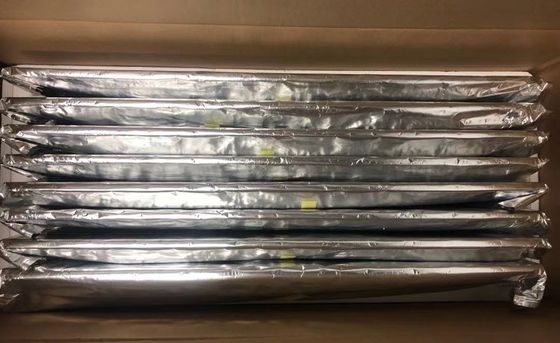

Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROWS

Contact Now

LM270WR3-SSA1 LG DISPLAY 27" 3840(RGB)×2160, UHD 163PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Description

Brand:	LG DISPLAY	Diagonal Size:	27.0"
Resolution:	3840(RGB)×2160, UHD 163PPI	Luminance:	350 Cd/m²
Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)	Power Supply:	10.0V (Typ.)
Outline:	608.8 × 355.3 × 13.3 (H×V×D)	Signal Type:	EDP (4 Lanes) , HBR2 (5.4G/lane) , 30 Pins Connector
Max. Ratings:	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LG Display LM270WR3-SSA1 Mechanical Features

Panel Size :	27.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	3840(RGB)×2160 [UHD]	RGB Vertical Stripe	0.1554×0.1554 [163PPI]	0.0518×0.1554
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	596.736(H) × 335.664(V)	-	608.8(H) × 355.3(V)	9.3/13.3 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	3-side borderless
Mounting :	Rear mounting holes (18-M3)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	3.20/3.36Kgs (Typ./Max.)	-	Antiglare, Hard coating (3H)

LG Display LM270WR3-SSA1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	350 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	1300 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	1.07B (8-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	78%	100%	78%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	81%	58%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

LG Display LM270WR3-SSA1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Bottom side)	4 strings	4 strings	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	51.3±3.4V		110/115mA (Typ./Max.)			22.6/24.1W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	SM06B-SHJH(HF)	1.0 mm	6 pins	1 pcs	BLE-6PINS-CCAACC

LG Display LM270WR3-SSA1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	10.0V (Typ.)		660/825mA (Typ./Max.)			6.6/8.25W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (4 Lanes), HBR2 (5.4G/lane)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	LS Mtron	GT05Q-30S-H10-MN	0.5 mm	30 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.3(H)×13.3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.20/3.36Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WR3-SSA1 can provides 350 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WR3-SSA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM270WR3-SSA1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

LM270WR3-SSA1 LG DISPLAY 27" 3840(RGB)×2160, UHD 163PPI 350 cd/m² INDUSTRIAL LCD DISPLAY 1
