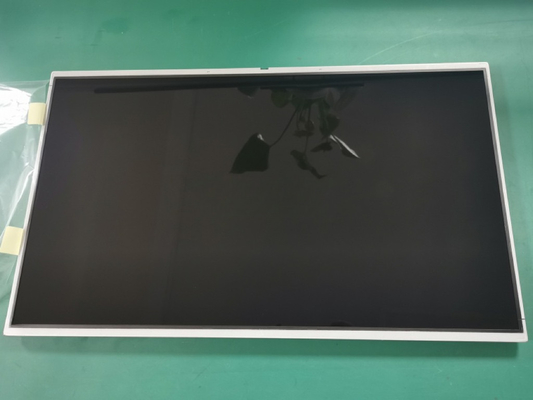

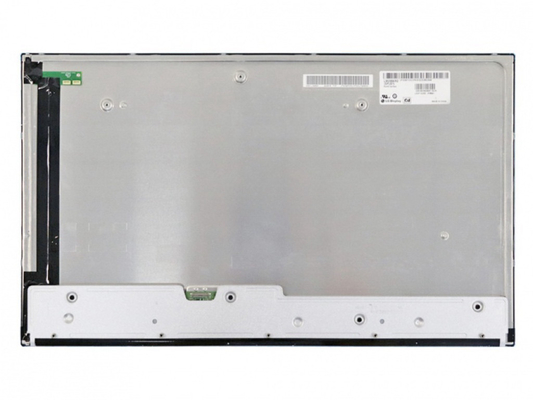

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 185PPI | Brightness: | 540cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Outline Dim: | 544.7(H)×328.2(V) ×14.3(D) Mm | Voltage Supply: | 10.0V (Typ.) |
| Interface Type: | EDP (4 Lanes) , HBR2 (5.4G/lane) , 30 Pins Connector |
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.04575×0.13725 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.13725×0.13725 (H×V) [185PPI] | |
| Mechanical Size : | Active Area(mm) | 527.04(H) × 296.46(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 544.7(H) × 328.2(V) | Depth(mm) | 9.6/14.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (8-M3) | |||
| Other Spec : | Weight | 2.19/2.3Kgs (Typ./Max.) | Treatment | Antiglare (Haze 3%), Hard coating (2H) |
| Basic Information : | Luminance(cd/m²) | 540 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 97% | sRGB | 100% coverage |
| Adobe RGB | 88% coverage | DCI-P3 | 98% coverage | |
| Rec.2020 | 73% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 630/788mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.3/7.88W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes), HBR2 (5.4G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 30 pins | 0.5 mm | EDP-30P4L-030A | |
| Backlight Features: | Shape | 4 strings × 2CN | Type | WLED | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 14S4P×2CN | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 40.5±2.8V | Current Supply | 100/105mA (Typ./Max.) | ||
| Consumption | 32.4/34.6W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WS-H06D | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 544.7(W)×328.2(H)×14.3(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), net weight of 2.19/2.3Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM238WR2-SPE1 can provides 540 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (DCI-P3). This product adopted 14S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WR2-SPE1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM238WR2-SPE1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
