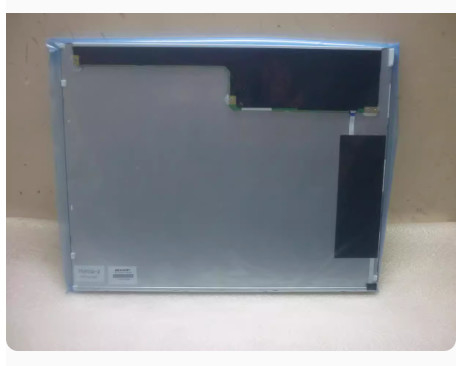

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 17" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 96PPI | Brightness: | 400 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C0 °C |
| Outline Dim: | 368(W)×306(H)×14.8(D) Mm | Bezel Opening: | 341.5(W)×274.6(H) Mm |
| Interface Type: | LVDS (2 Ch, 8-bit) 30 Pins Connector |
| Screen Size : | 17.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 337.92×270.336 mm | 341.5×274.6 mm | 368×306 mm | 10/14.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 5:4 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.26Kgs (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6568K | 16.7M (8-bit) | X:0.310; Y:0.338 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 93% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 50K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 10031HR-H06 | 1 pcs | 6 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±0.5V | 1.05/1.16A (Typ./Max.) | 12.6/13.86W (Typ./Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 520/676mA (Typ./Max.) | 2.6/3.38W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| LS Mtron | GT103-30S-H23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LB170E01-SL01 | a-Si TFT-LCD , LCM | LB170E01 (SL)(01) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -10 ~ 70 °C | -20 ~ 80 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 368(W)×306(H)×14.8(D) mm, viewing area size of 341.5(W)×274.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.26Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LB170E01-SL01 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. LB170E01-SL01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB170E01-SL01 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
