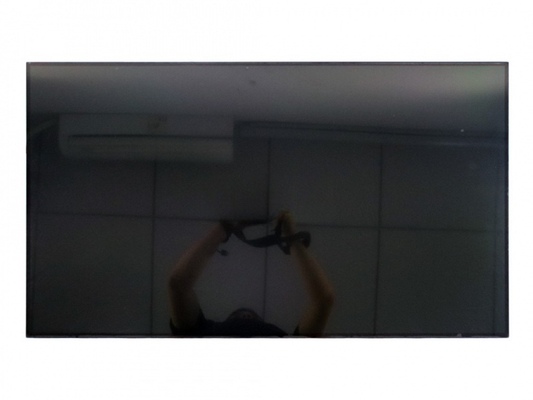

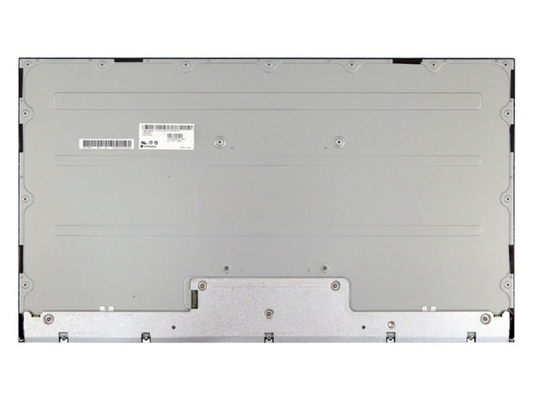

Product Details:
|
| Brand: | LG Display | Resolution: | 3840(RGB)×2160, UHD 139PPI |
|---|---|---|---|
| Luminance: | 350 Cd/m² | Diagonal Size: | 32" |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Outline(mm): | 709.11(W)×405.48(H) ×13.6(D) Mm | Interface Type: | EDP (4 Lanes) , HBR2 (5.4G/lane) , 30 Pins Connector |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 709.11(W)×405.48(H)×13.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 4.52/4.75g (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM315WR1-SSB1 can provides 350 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 94% (DCI-P3). This product adopted 11S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WR1-SSB1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM315WR1-SSB1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
