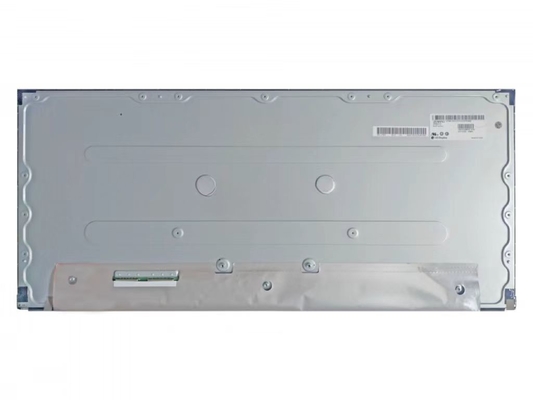

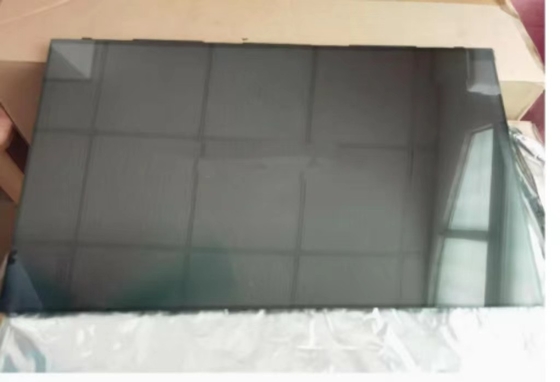

Product Details:
|
| Brand: | LG Display | Resolution: | 2560(RGB)×1080, CSHD 96PPI |
|---|---|---|---|
| Luminance: | 250 Cd/m² | Diagonal Size: | 29" |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Outline(mm): | 693.6 × 308.9 × 17 (H×V×D) | Interface Type: | LVDS (4 Ch, 8-bit) , 92 Pins Connector |
| Pixel Features : | Number of Pixel | 2560(RGB)×1080 [CSHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0876×0.2628 mm | Pixel Pitch(W×H) | 0.2628×0.2628 mm [96PPI] | |
| Physical Size : | Active Viewing | 672.768(W)×283.824(H) mm | Overall Dim. | 693.6(W)×308.9(H) mm |
| Bezel Opening | - | Overall Depth | 11/17 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 21:9 | Shape Style | 3-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 3.11/3.265Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Input Current | 0.53/0.66A (Typ./Max.)(60Hz) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.3/6.6W (Typ./Max.) | Signal Interface | LVDS (4 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05P-51S-H38-E1500 | 1 pcs | 0.5 mm | 51 pins | ||
| LS Mtron | GT05P-41S-H38-E1500 | 1 pcs | 0.5 mm | 41 pins | ||
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 18S4P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 60/65mA (Typ./Max.) | Input Voltage | 47.9±3.6V | ||
| Consumption | 11.5/12.4W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHJH(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 672.768(W)×283.824(H) mm, outline size of 693.6(W)×308.9(H)×17(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.11/3.265Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM290WW2-SSC1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 18S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM290WW2-SSC1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM290WW2-SSC1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
