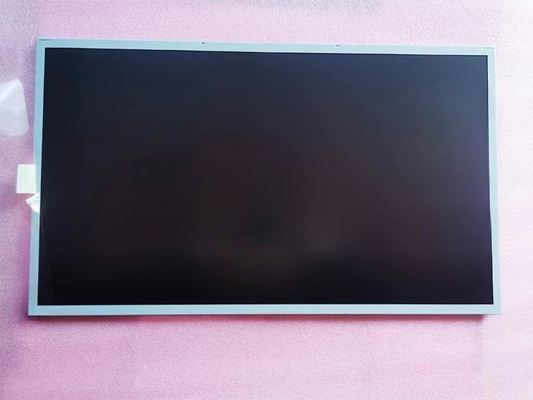

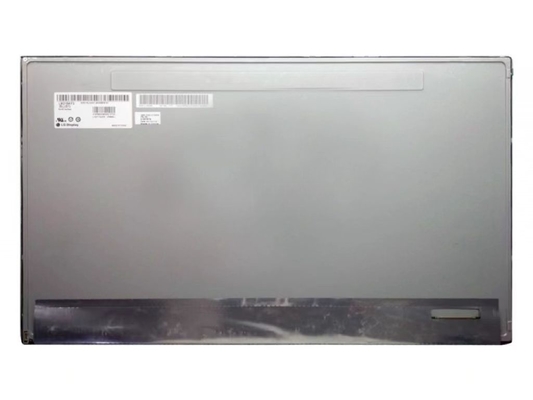

LM215WF3-SLS2 LG Display 21.5" 1920(RGB)×1080, FHD 102PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

• .

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 497.6(W)×292.2(H)×11(D) mm, viewing area size of 479.8(W)×271.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.69/1.77Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM215WF3-SLS2 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 17S2P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM215WF3-SLS2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM215WF3-SLS2 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
