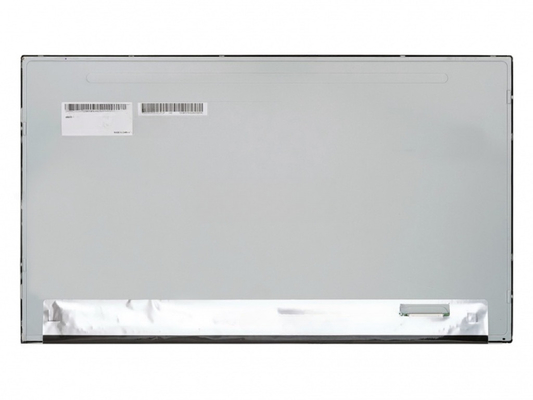

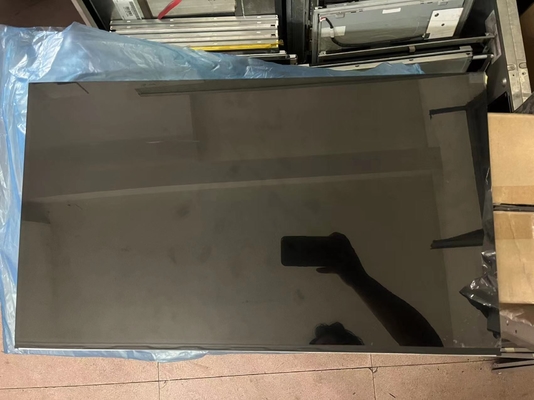

Product Details:
|
| Brand: | LG Display | Resolution: | 1920(RGB)×1080, FHD 92PPI |
|---|---|---|---|
| Luminance: | 250 Cd/m² | Diagonal Size: | 23.8" |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Bezel Opening: | 530.2(W)×299.6(H) Mm | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0915×0.2745 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2745×0.2745 (H×V) [92PPI] | |
| Mechanical Size : | Active Area(mm) | 527.04(H) × 296.46(V) | Bezel Area(mm) | 530.2(H) × 299.6(V) |
| Outline Dim.(mm) | 543(H) × 317.4(V) | Depth(mm) | 8.4/11.7 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 2.00/2.10Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Basic Information : | Brand | Model | LM238WF1-SLK1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 23.8" | Alias | LM238WF1 (SL)(K1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) | ||
| Typical Features : |
|
|||
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 460/575mA (Typ./Max.)(60Hz) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.3/2.88W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160C | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 18S2P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 54.9±3.6V | Current Supply | 90/95mA (Typ./Max.) | ||
| Consumption | 9.9/10.5W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration  |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 543(W)×317.4(H)×11.7(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.00/2.10Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM238WF1-SLK1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 18S2P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WF1-SLK1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM238WF1-SLK1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
