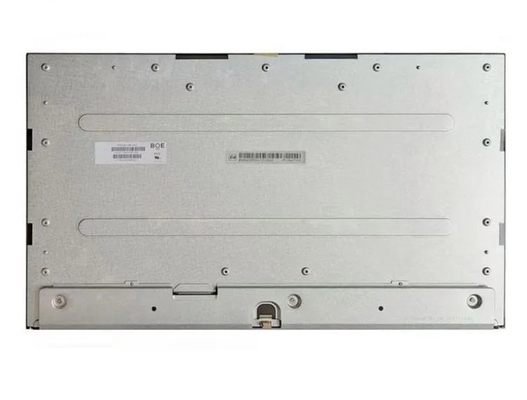

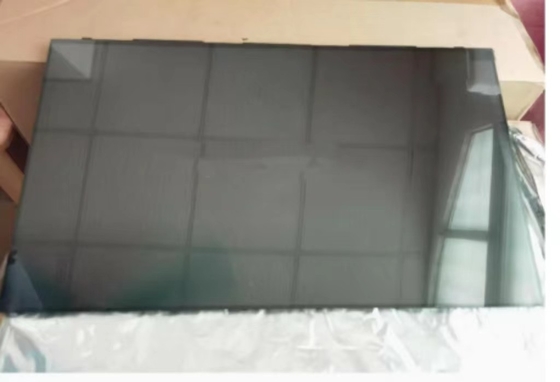

Product Details:
|
| MODEL NUMBER: | MV238FHM-N62 | BRAND: | BOE |
|---|---|---|---|
| SIZE: | 23.8INCH | BRIGHTNESS: | 250 Cd/m² |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 92PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Active Area: | 527.04(W)×296.46(H) Mm |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0915×0.2745 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2745×0.2745 (H×V) [92PPI] | |
| Mechanical Size : | Active Area(mm) | 527.04(H) × 296.46(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 535(H) × 313(V) | Depth(mm) | 6.75/12.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 3-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (15-M3) | |||
| Other Spec : | Weight | 2.20Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 79% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 82% coverage | |
| Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 420/920mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.1/4.6W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30R-C23 | 1 pcs | 30 pins | 1.0 mm | ||
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 20S4P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 50/56/58V (Min./Typ./Max.) | Current Supply | 41/46mA (Typ./Max.) | ||
| Consumption | 9.18/9.51W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
