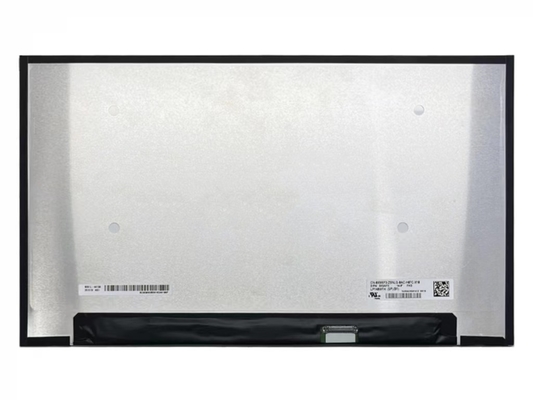

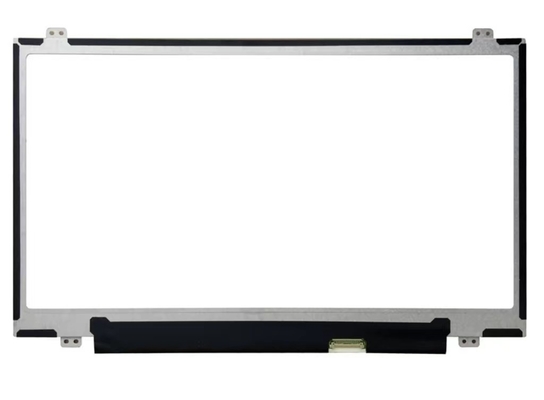

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | |
|---|---|
| Environment : |
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Mounting : | |
| Other Spec : |
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamut : |
| Signal Electrical : | |
|---|---|
| Signal Type : | |
| Interface Features : | |
| Interface Detail : |
| Backlight Features : | |
|---|---|
| Interface Features : | |
| Backlight Driver : | |
| Driver Electrical : |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.81(W)×186.07(H)×5.25(D) mm, with surface treament of Antiglare, net weight of 300g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WFH-SPB1 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LP140WFH-SPB1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
