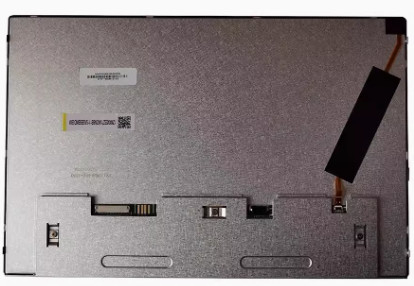

Product Details:
|
| Brand: | BOE | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Luminance: | 500 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Basic Detail : | |
|---|---|
| Maximum Ratings : |
| Pixel Features : | |
|---|---|
| Physical Size : | |
| Outline Features : | |
| Fixation : | |
| Other Detail : |
| Basic Detail : | |
|---|---|
| Color Performance : |
| Signal Electrical : | |
|---|---|
| Interface Features : | |
| Interface Detail : |
| Lamp Features : | |
|---|---|
| Lamp Electrical : | |
| Interface Features : | |
| Backlight Driver : | |
| Driver Electrical : |
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 42 | 1 | 482×366×297 | 13.40 | 0.0524 | |
| Pallet | 765 | 18 | N/A | N/A | N/A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228.2(W)×148.85(H)×4.9(D) mm, with surface treament of Hard coating (3H), net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, GV101WXM-N80 can provides 500 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. GV101WXM-N80 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
