Product Details:
|
| Brand: | BOE | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Luminance: | 220 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Voltage Supply: | 3.3V (Typ.) |

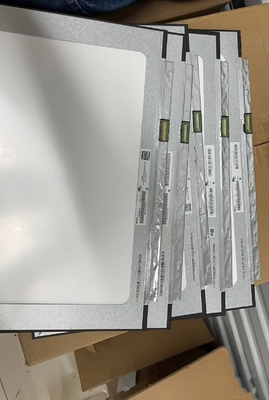

| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 35 | 1 | 475×335×285 | 15.80 | 0.0454 | |
| Pallet | 630 | 18 | N/A | N/A | N/A |

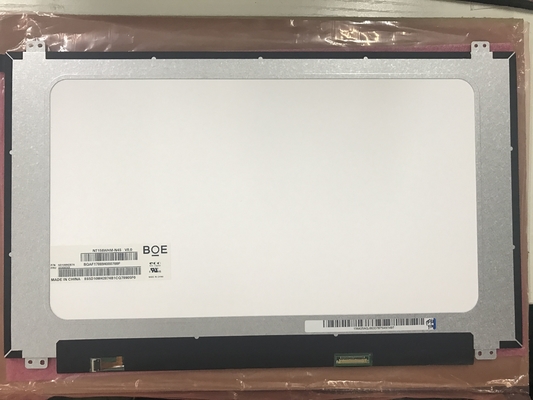

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×216.68(H)×3.2(D) mm, with surface treament of Antiglare, net weight of 380g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV156FHM-N3D can provides 220 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV156FHM-N3D utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
