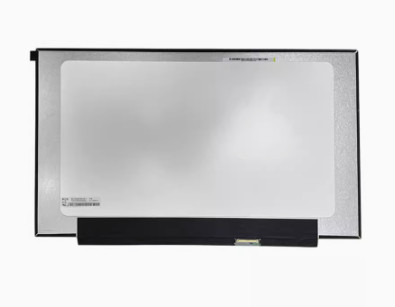

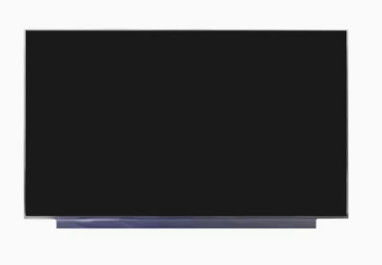

Product Details:
|
Brand: | LG Display | Diagonal Size: | 15.6" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 141PPI | Luminance: | 300 Cd/m² (Typ.) |
Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Basic Detail : | |
---|---|
Maximum Ratings : |
Pixel Features : | |
---|---|
Physical Size : | |
Outline Features : | |
Fixation : | |
Other Detail : |
Basic Detail : | |
---|---|
Color Performance : | |
1931 Color Gamut : |
Signal Electrical : | |
---|---|
Interface Features : | |
Interface Detail : |
Lamp Features : | |
---|---|
Interface Features : | |
Backlight Driver : | |
Driver Electrical : |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 349.16(W)×213.09(H)×2.6(D) mm, with surface treament of Antiglare, net weight of 310g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LP156WFF-SPB1 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP156WFF-SPB1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
