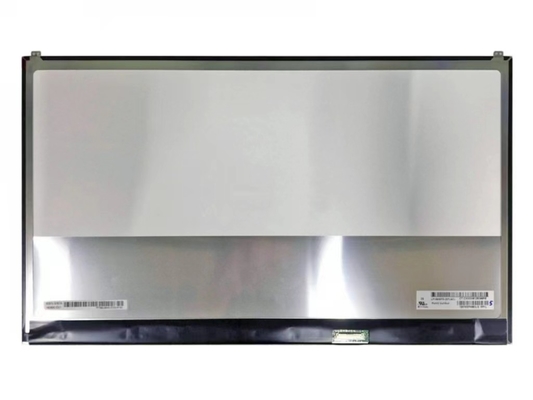

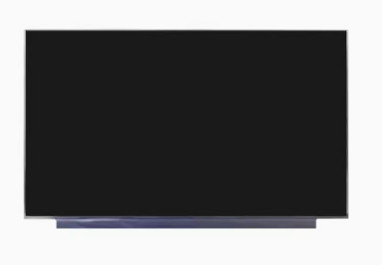

Product Details:
|
Brand: | LG Display | Diagonal Size: | 15.6" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 141PPI | Luminance: | 300 Cd/m² (Typ.) |
Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) |
Basic Info : | |
---|---|
Reliability : |
Pixel Features : | |
---|---|
Mechanical Size : | |
Outline Features : | |
Holes & Brackets : | |
Other Features : |
Basic Information : | |
---|---|
Color Performance : | |
1931 Color Gamut : |
Signal Systerm : | |
---|---|
Signal Electrical : | |
Interface Features : | |
Connector Detail : |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 349.96(W)×210.3(H)×4.6(D) mm, viewing area size of 347.26(W)×196.68(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 225g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP156WF8-SPA1 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 61% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LP156WF8-SPA1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
