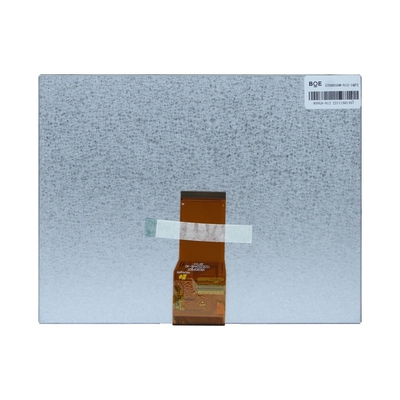

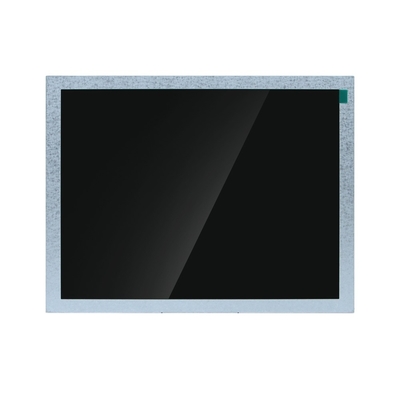

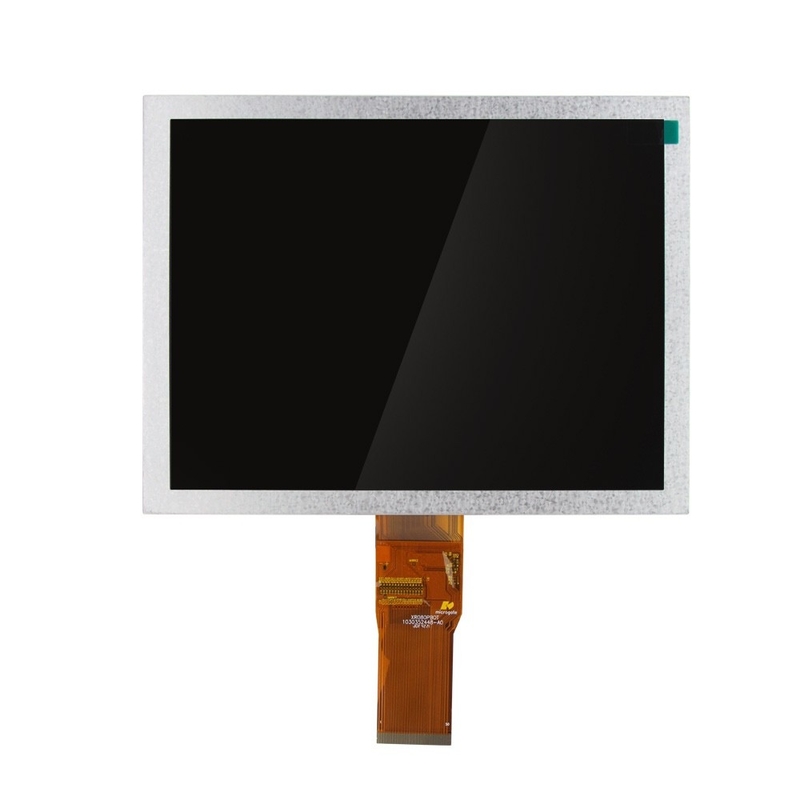

BOE 8.0" 800(RGB)×600, 250 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 183(W)×141(H)×5.9(D) mm, viewing area size of 164.8(W)×124.3(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, GT080S0M-N11-1QP0 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4S5P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. GT080S0M-N11-1QP0 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10/21/-7.78V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

According to datasheet with version of Rev.1 which was released out on 2 27 2021, GT080S0M-N11-1QP0 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 183(W)×141(H)×5.9(D) mm, viewing area size of 164.8(W)×124.3(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, GT080S0M-N11-1QP0 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/75/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4S5P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. GT080S0M-N11-1QP0 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10/21/-7.78V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of GT080S0M-N11-1QP0 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with BOE or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
