Product Details:
|
| Brand: | TIANMA | Diagonal Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 190PPI | Luminance: | 1600 Cd/m² |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) | Power Supply: | 3.3V (Typ.) |
| Environment: | Operating Temperature: -20 ~ 80 °C ; Storage Temperature: -30 ~ 85 °C |

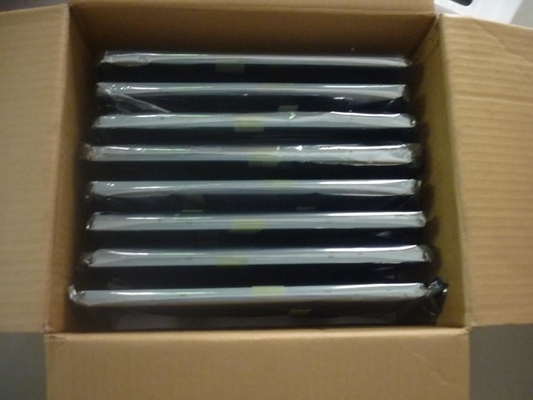

| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 14 | 1 | 530×430×274 | 9.93 | 0.0624 | |
| Pallet | 280 | 20 | N/A | N/A | N/A |

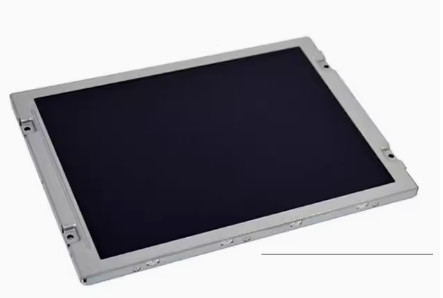

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.32(W)×144.18(H) mm, outline size of 273.5(W)×166.5(H)×11.5(D) mm, with surface treament of Hard coating, net weight of 530g. As a SFT, Normally Black, Transmissive LCM product, P1160FHF1MA00 can provides 1600 cd/m² display brightness 900:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. P1160FHF1MA00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
