Product Details:
|
| Brand: | LG Display | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 139PPI | Brightness: | 750 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | |
|---|---|
| Environment : |
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Mounting : | |
| Other Spec : |

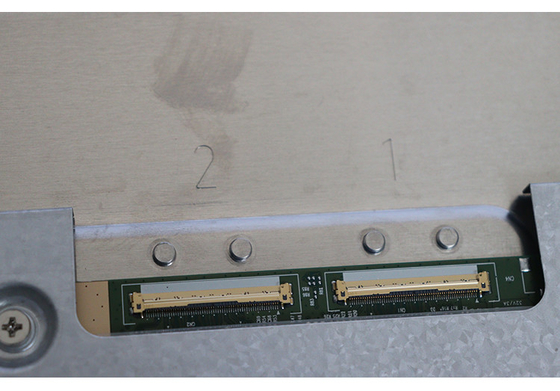

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 713.1(W)×415.25(H)×22.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 6.37Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM315WR4-SSA1 can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 4 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 97% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WR4-SSA1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 120 pins Connector with power supply voltage of 10.0V (Typ.).
