Product Details:
|
| Brand: | LG Display | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440, Quad-HD 108PPI | Luminance: | 350 (Typ.)(cd/m²) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Voltage Supply: | 10.0V (Typ.) |
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 10 | 1 | 710×365×448 | 32.20 | 0.1161 | |
| Pallet | 60 | 6 | 1140×740×1085 | 207.83 | 0.9153 |

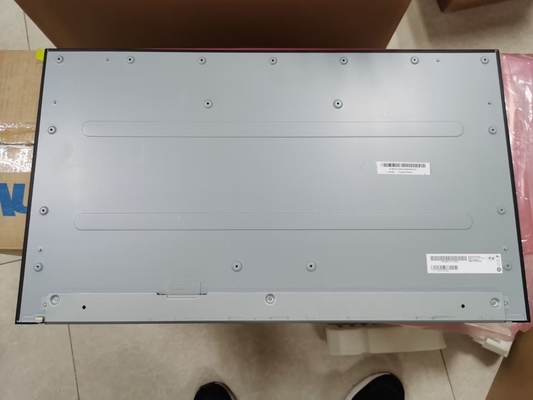

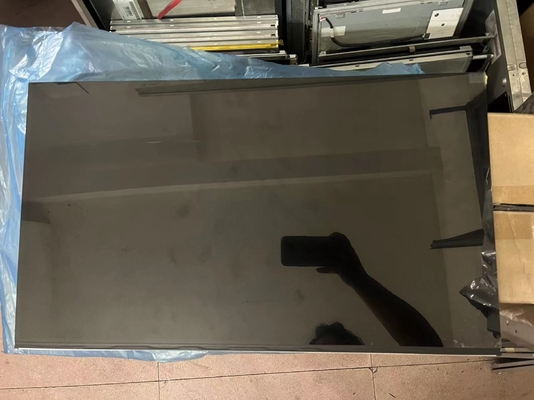

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.6(W)×348.6(H)×13.3(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.98/3.13Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WQE-SSA1 can provides 350 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted 19S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WQE-SSA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.).
