Product Details:
|
Diagonal Size: | 14.0" | Resolution: | 1920(RGB)×1200, WUXGA 161PPI |
---|---|---|---|
Luminance: | 300 Cd/m² | Brand: | BOE |
Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Basic Detail : | |
---|---|
Maximum Ratings : |
Pixel Features : | |
---|---|
Physical Size : | |
Outline Features : | |
Fixation : | |
Other Detail : |
Basic Detail : | |
---|---|
Color Performance : | |
1931 Color Gamut : |
Signal Electrical : | |
---|---|
Interface Features : | |
Interface Detail : |
Lamp Features : | |
---|---|
Interface Features : | |
Backlight Driver : | |
Driver Electrical : |

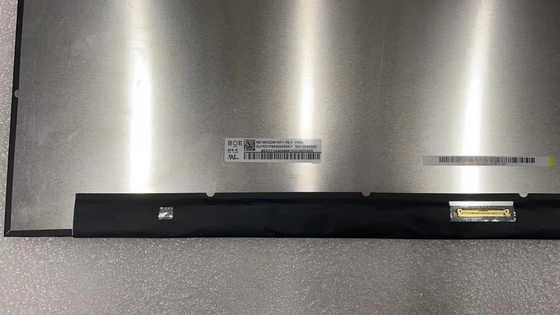

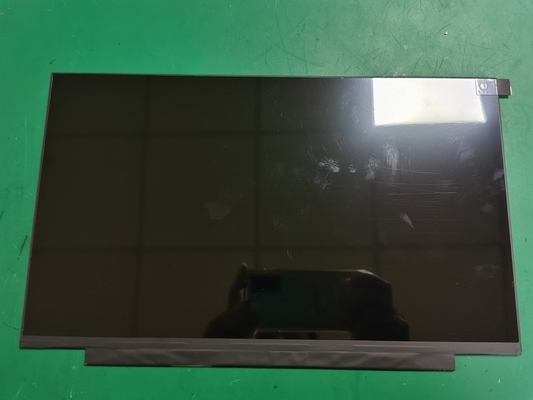

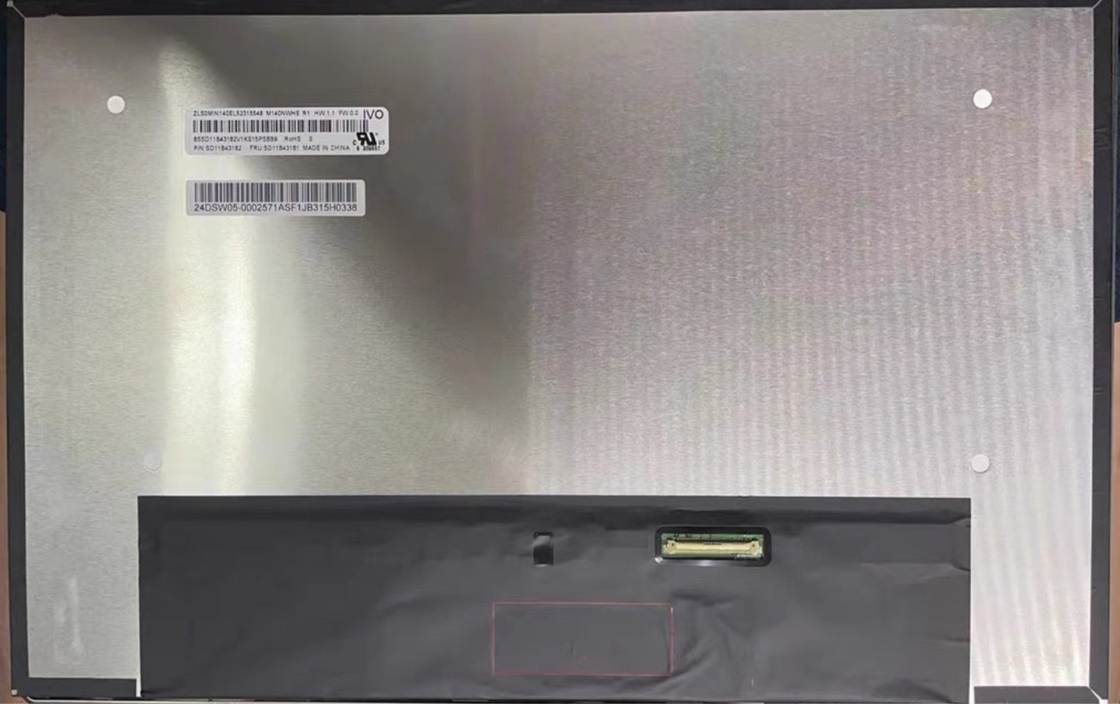

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.59(W)×206(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a HADS, Normally Black, Transmissive LCM product, NV140WUM-N45 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140WUM-N45 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
