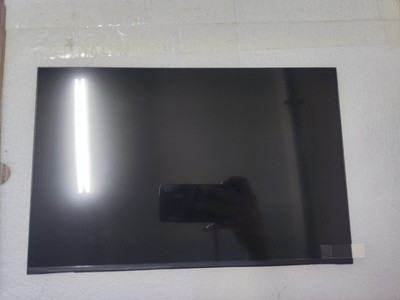

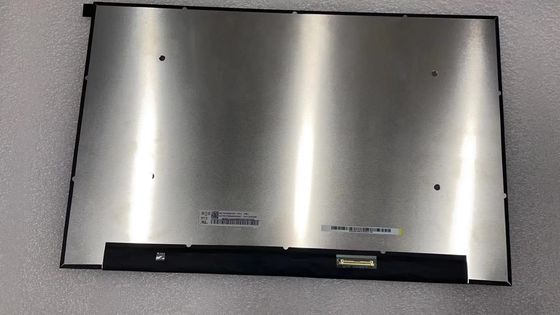

Product Details:
|
Brand: | BOE | Diagonal Size: | 14.0" |
---|---|---|---|
Resolution: | 1920(RGB)×1200, WUXGA 161PPI | Luminance: | 250 Cd/m² |
Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Power Supply: | 3.3V (Typ.) |
Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Basic Information : | Brand | Model | NV140WUM-N42 | |
---|---|---|---|---|
Type | LCM a-Si TFT-LCD | Used For | ||
Screen Size | 14.0" | Alias | BOE0A2A | |
Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
RoHS | Vibration | 1.5G (14.7 m/s²) |
Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.05236×0.15708 (H×V) |
---|---|---|---|---|
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.15708×0.15708 (H×V) [161PPI] | |
Mechanical Size : | Active Area(mm) | 301.594(H) × 188.496(V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 306.59(H) × 199.5(V) | Depth(mm) | 2.85 (Typ.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
Mounting : | Without | |||
Other Spec : | Weight | 300g (Max.) | Treatment | Antiglare, Hard coating (3H) |
Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
---|---|---|---|---|
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | HADS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 16 (Typ.)(Tr+Td) | |
Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 46% | sRGB | 64% coverage |
Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 212mA (Max.) | ||
---|---|---|---|---|---|---|
Consumption | 0.7W (Max.) | |||||
Signal Type : | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Signal Voltage | - | |||
Interface Features : | Position | Type | Connector | |||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
I-PEX | 20455-030E-66 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020I |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.59(W)×199.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a HADS, Normally Black, Transmissive LCM product, NV140WUM-N42 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140WUM-N42 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
