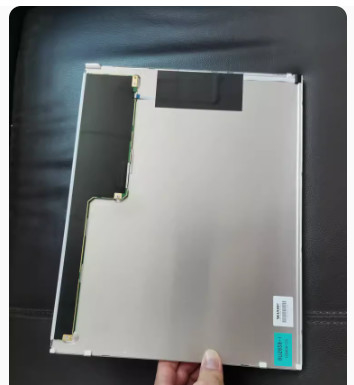

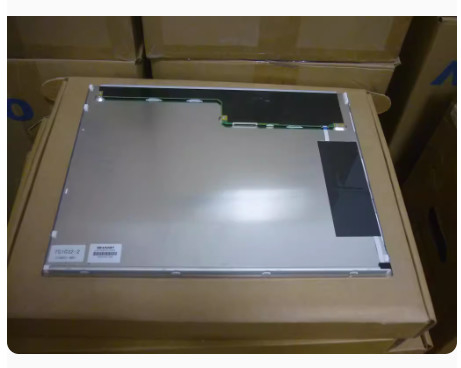

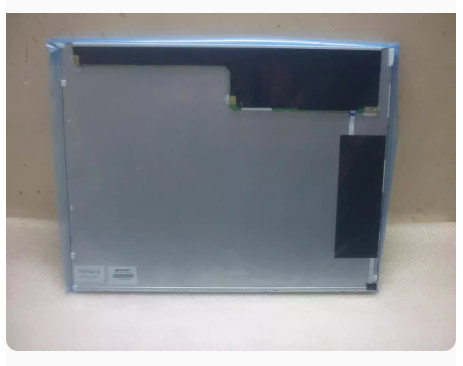

Product Details:
|
| Brand: | Sharp | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Viewing Angle: | 85/85/85/85 |
| Power Supply: | 3.3V (Typ.) | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
| Basic Info : | Panel Brand | Panel Model | LQ150X1LX99 | |
|---|---|---|---|---|
| Diagonal Size | 15.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -25 ~ 70 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] | |
| Mechanical Size : | Display Area | 304.128×228.096 mm (H×V) | Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 9.6±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | - | Surface | Hard coating (3H) |
| Basic Information : | Brightness | - | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ASV, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.320 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 7037K | White Uniformity | 1.33 (Max.)(5 points) |
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 380/500mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF14H-20P-1.25H | 1.25 mm | 20 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Hard coating (3H). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LX99 can provides 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. LQ150X1LX99 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
.
