Product Details:
|
| Brand: | Chimei Innolux | Diagonal Size: | 19.6" |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200, UXGA 102PPI | Luminance: | 500 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥20) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Power Supply: | 12.0V (Typ.) |
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 5 | 1 | 422×402×558 | 15.00 | 0.0947 | |
| Air pallet | 60 | 12 | 1200×1000×1327 | N/A | 1.5924 | |
| Sea & Land pallet | 90 | 18 | 1200×1000×1918 | N/A | 2.3016 |

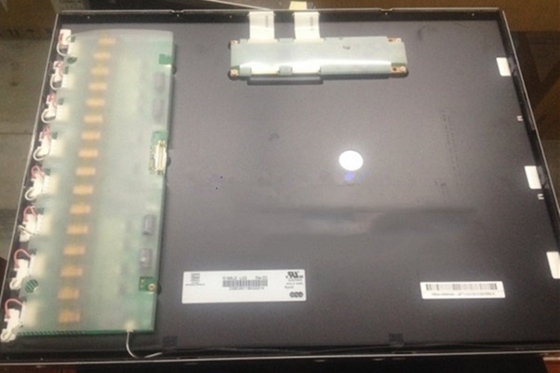

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 398.4(W)×298.8(H) mm, outline size of 427(W)×322.4(H)×38.3(D) mm, viewing area size of 402.4(W)×302.8(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.94/1.99Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, R196U2-L02 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 17 pcs CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With Inverter. R196U2-L02 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 12.0V (Typ.)
