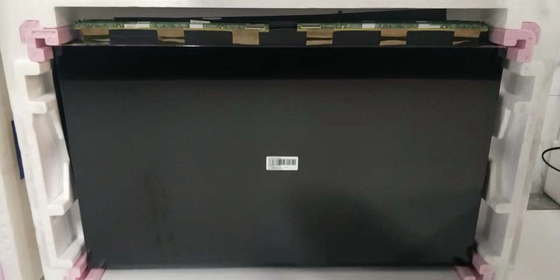

HV320WHB-F56 BOE 32.0" 1366(RGB)×768, 0 cd/m² INDUSTRIAL LCD DISPLAY

HV320WHB-F56 BOE 32.0" 1366(RGB)×768,  0 cd/m² INDUSTRIAL LCD DISPLAY
HV320WHB-F56 BOE 32.0" 1366(RGB)×768,  0 cd/m² INDUSTRIAL LCD DISPLAY HV320WHB-F56 BOE 32.0" 1366(RGB)×768,  0 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  HV320WHB-F56 BOE 32.0" 1366(RGB)×768, 0 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: BOE
Certification: ISO9001
Model Number: HV320WHB-F56
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROWS

HV320WHB-F56 BOE 32.0" 1366(RGB)×768, 0 cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: BOE Diagonal Size: 32.0"
Resolution: 1366(RGB)×768, WXGA 49PPI Luminance: 0 Cd/m²
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Frame Rate: 60Hz

BOE HV320WHB-F56 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  HV320WHB-F56 a-Si TFT-LCD , CELL -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



BOE HV320WHB-F56 Mechanical Features

Screen Size : 32.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1366(RGB)×768, WXGA RGB Vertical Stripe 0.17025×0.51075 mm 0.51075×0.51075 mm [49PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
697.685×392.256 mm - 715×411 mm 1.32 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Plate Thickness
Flat Rectangle 16:9 Landscape type 0.50+0.50 mm
Other Spec : Mass Panel Cover Surface Treatment
852g (Typ.) - Antiglare (Haze 1%), Hard coating (2H)



BOE HV320WHB-F56 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
0 cd/m² ADS, Normally Black, Transmissive 1200:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 8 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
12895K 16.7M (8-bit) X:0.262; Y:0.284
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73% 99% 76%
DCI-P3 Coverage Rec.2020 Coverage Remarks
76% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Transmissivity : 6.2% (Typ.)(with Polarizer)



BOE HV320WHB-F56 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : No
Driver IC List: COF Built-in 2 source chips



BOE HV320WHB-F56 Interface Features

Interface Features : Signal Type Physical Type Interface Position
Mini LVDS Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
UJU   1 pcs 60 pins 0.5 mm



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.685(W)×392.256(H) mm, outline size of 715(W)×411(H)×1.32(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (2H), net weight of 852g (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV320WHB-F56 can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. HV320WHB-F56 utilizes Mini LVDS as it's signal inputting systerm, which connected by 60 pins Connector.



HV320WHB-F56 BOE 32.0" 1366(RGB)×768,  0 cd/m² INDUSTRIAL LCD DISPLAY 0
