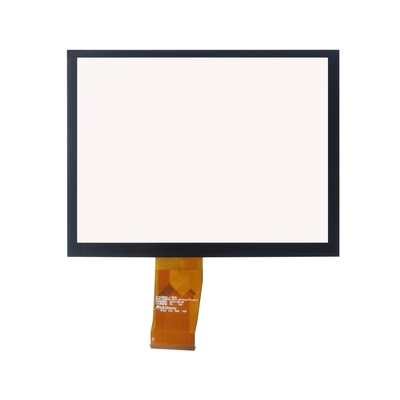

Product Details:
|
| Brand: | HannStar | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Brightness: | 380 Cd/m² |
| Viewing Angle: | 75/75/60/70 (Typ.)(CR≥10) | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Basic Info : | |
|---|---|
| Reliability : |
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Other Features : |
| Basic Information : | |
|---|---|
| Color Performance : |
| Back-light Features : | |
|---|---|
| Lamp Electrical : | |
| Interface Features : | |
| Interface Detail : |
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 80 | 1 | 460×370×384 | N/A | 0.0654 |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 189.7(W)×149.4(H)×5.3(D) mm, viewing area size of 173.4(W)×130.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 235g (Typ.). As a TN, Normally White, Transmissive LCM product, HSD084ISN1-A01 can provides 380 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors. This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HSD084ISN1-A01 utilizes TTL (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/10/15/-7V (Typ.
