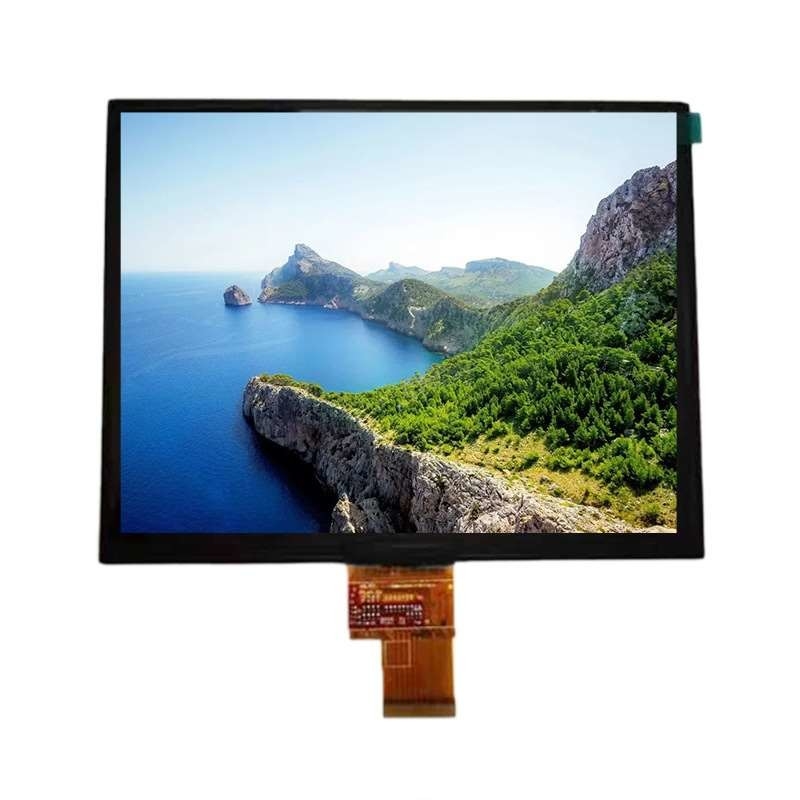

Product Details:
|
| Brand: | TIANMA | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 184PPI | Luminance: | 800 (Typ.)(cd/m²) |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Voltage Supply: | 3.3V (Typ.) |
| Basic Detail : | |
|---|---|
| Maximum Ratings : |
| Pixel Features : | |
|---|---|
| Physical Size : | |
| Outline Features : | |
| Fixation : | |
| Other Detail : |
| Basic Detail : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamut : | |
| Dispaly Performance : |
|
| Signal Electrical : | |
|---|---|
| Interface Features : | |
| Interface Detail : |
| Lamp Features : | |
|---|---|
| Lamp Electrical : | |
| Interface Features : | |
| Interface Detail : | |
| Backlight Driver : |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H) mm, viewing area size of 179.64(W)×102.36(H) mm, with surface treament of Hard coating, net weight of 183g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TM080JDKP96 can provides 800 cd/m² display brightness 1300:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM080JDKP96 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.).
