Product Details:
|
| Model P/N: | M238HAK01.0 | Brand: | AUO |
|---|---|---|---|
| Diagonal Size: | 23.8" | Resolution: | 1920(RGB)×1080, |
| Brightness: | 300 Cd/m² | Viewing Angle: | 89/89/89/89 |
| Input Voltage: | 5.0V (Typ.) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Inner box | 10 | 1 | 652×380×442 | 23.67 | 0.1095 | |
| Pallet | 90 | 9 | 1150×690×1458 | 224.03 | 1.1569 |
‘

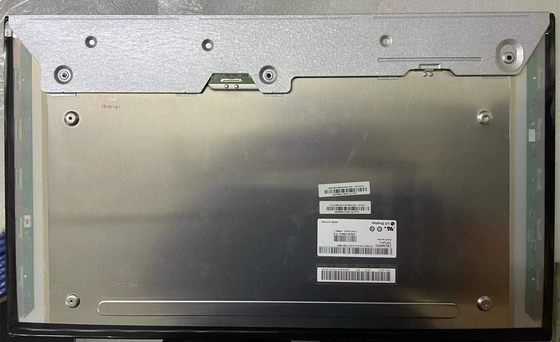

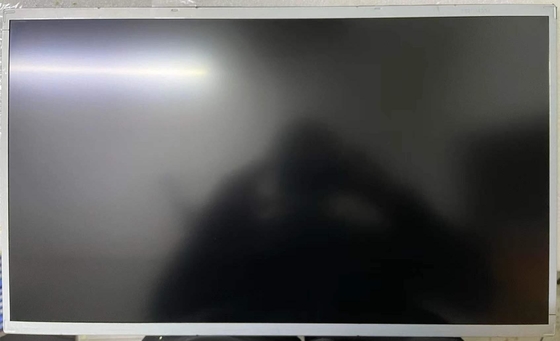

without backlight driver, touchscreen On-Cell Touch. Based on datasheet with version of 0Y_Ver1.1 which was released out on 11 11 2022, M238HAK01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535.12(W)×313.06(H)×12.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.11/2.24Kgs (Typ./Max.). As a AHVA, Normally Black, Transmissive LCM product, M238HAK01.0 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. M238HAK01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 36 pins Connector with power supply voltage of 5.0V (Typ.)
