Product Details:
|
| Brand: | BOE | Diagonal Size: | 12.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 125PPI | Luminance: | 200 Cd/m² |
| Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Information : | |
|---|---|
| Environment : |
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Mounting : | |
| Other Spec : |
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamut : |
| Signal Electrical : | |
|---|---|
| Signal Type : | |
| Interface Features : | |
| Interface Detail : |
| Backlight Features : | |
|---|---|
| Interface Features : | |
| Backlight Driver : | |
| Driver Electrical : |

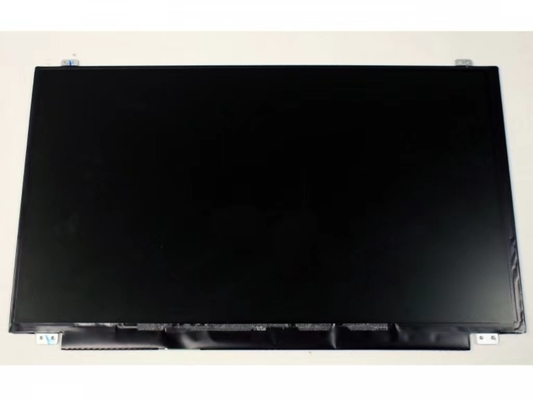

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 276.615(W)×155.52(H) mm, outline size of 290.5(W)×180.9(H)×3(D) mm, net weight of 250g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, NT125WHM-N42 can provides 200 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT125WHM-N42 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
