Product Details:
|
| Brand: | Innolux | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 161PPI | Luminance: | 400 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

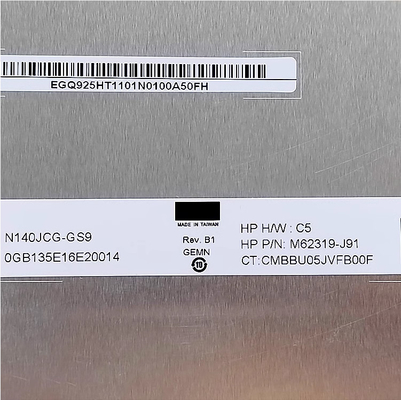

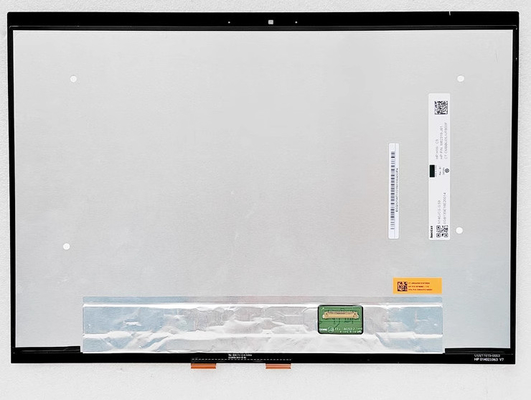

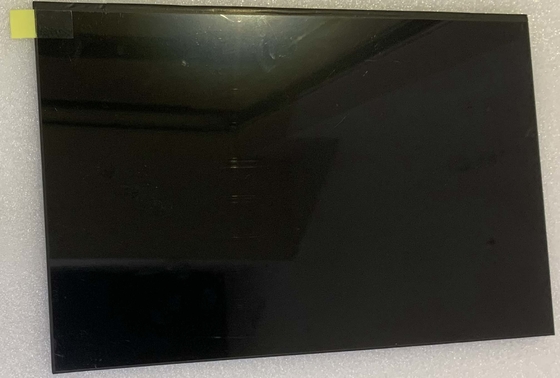

| Basic Detail : | Manufacturer | Model Name | N140JCG-GS9 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 14.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05236×0.15708 mm | Pixel Pitch(W×H) | 0.15708×0.15708 mm [161PPI] | |
| Physical Size : | Active Viewing | 301.594(W)×188.496(H) mm | Overall Dim. | 307.29(W)×199.25(H) mm |
| Bezel Opening | - | Overall Depth | 1.90/3.80 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 192/205g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 16/14 (Typ.)(Tr/Tf) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Input Current | 133/149mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.49W (Max.) | Signal Interface | eDP (2 Lanes), eDP1.4 | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-76 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | - | Input Voltage | 5/12/21V (Min./Typ./Max.) | ||
| Consumption | 2.24WW (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 307.29(W)×199.25(H)×3.8(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 192/205g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AAS, Normally Black, Transmissive LCM product, N140JCG-GS9 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/14 (Typ.)(Tr/Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N140JCG-GS9 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
