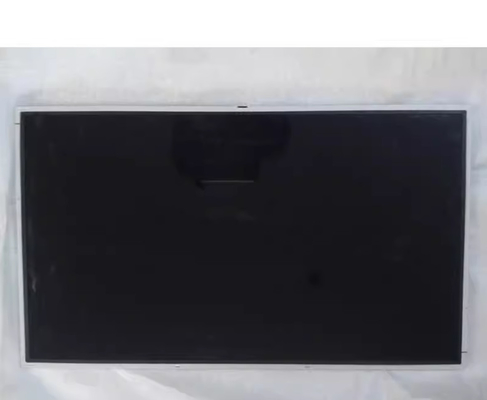

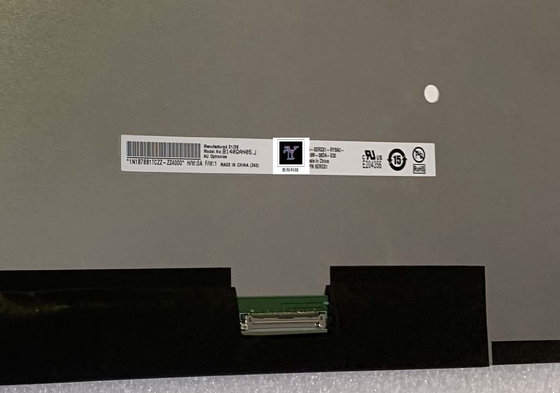

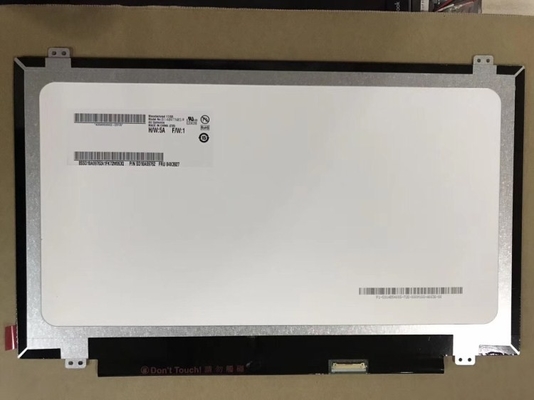

Product Details:
|
| Brand: | IVO | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Brightness: | 220 Cd/m² |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.399(W)×173.952(H) mm, outline size of 320.9(W)×199.2(H)×5.25(D) mm, with surface treament of Antiglare, net weight of 290g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a TN, Normally White, Transmissive LCM product, M140NWR6 R3 can provides 220 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. M140NWR6 R3 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
